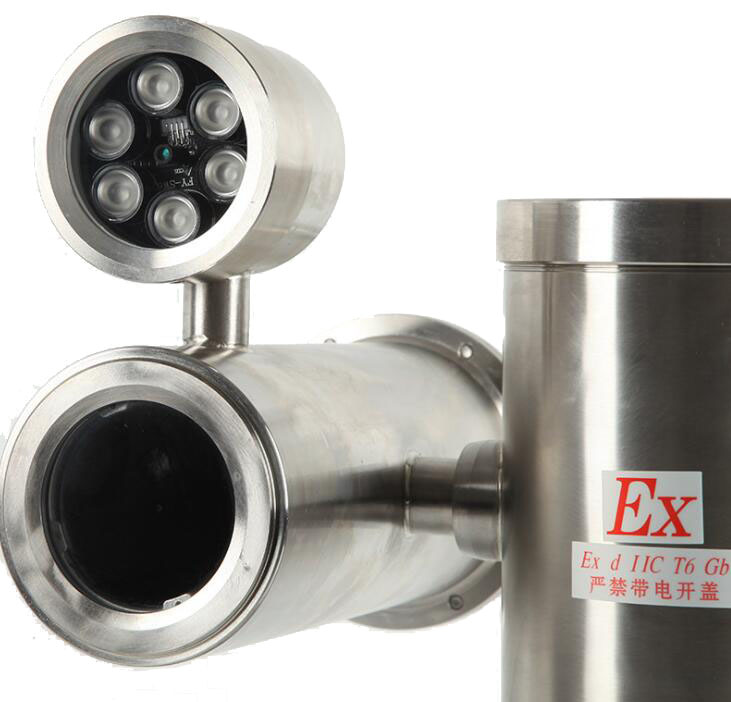

outdoor Explosion proof PTZ housing with IR illumination

EX410 flameproof integrated camera is a high-end explosion-proof video surveillance front-end device that integrates a flameproof camera (shield), a flameproof pan/tilt, and a flameproof decoder. It can realize up, down, and down according to control instructions. The movements in the left and right directions are completely monitored in the three-dimensional space without dead angles. The Ex410 explosion-proof integrated camera also has an intelligent speed adjustment function, which can give an appropriate positioning speed according to the ratio of the user's control of the lens, making the operation more user-friendly. This model is driven by a hybrid stepper motor. The horizontal and pitch directions are driven by a worm gear mechanism. It has mechanical self-locking performance. All internal components are made of stainless steel. The stability and reliability are first-class. The explosion-proof grade and temperature group of this explosion-proof all-in-one instrument meet the highest requirements of national standards and can be applied to any gas explosion-proof environment. EX410 window has nano glass self-cleaning function and has good anti-fouling ability.

Model:EX410

Air pressure: 80KPa～106KPa

Ambient temperature: –25℃～+60℃

Relative humidity: not more than 95% (+25℃)

Explosion-proof mark: ExdⅡC T6 Gb/Ex Td A21 IP68 T80℃

Protection level: IP68

Working voltage: AC85V~265V (or customized other voltage specifications)

Current: ≤500mA

Speed: Level: 0º～40º/S Pitch: 0º～40º/S

Rotation angle: horizontal: 360º continuous rotation

Pitch: +90º/-90°

Control method: RS-485
