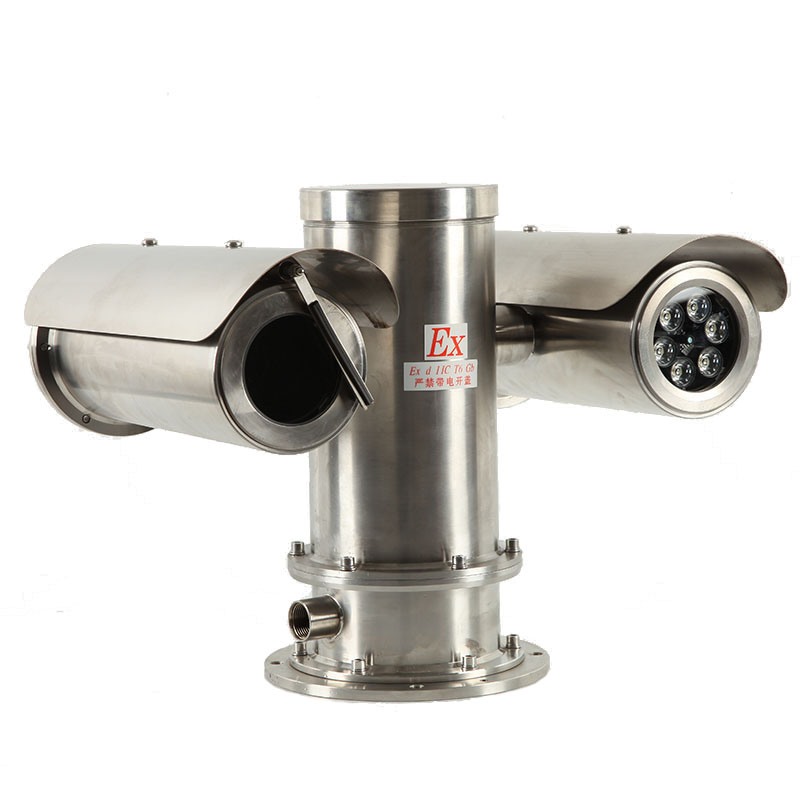

explosion-proof security PTZ bullet camera housing with IR lamp

EX420 flameproof infrared integrated night vision device is a high-end explosion-proof video surveillance front-end device that integrates a flameproof camera (shield), flameproof infrared lamp, flameproof gimbal, and flameproof decoder into one. The control command realizes the movements in the four directions of up, down, left and right, completely realizes the three-dimensional space without dead angle monitoring, and has the functions of full-automatic cruise and lens preset position. Ex420 explosion-proof infrared integrated camera has intelligent speed regulation function, which can give proper positioning speed according to the ratio of the user to the lens control, making the operation more user-friendly. This model is driven by a hybrid stepper motor, and the worm and gear transmission mechanism is used in both the horizontal and pitch directions. It has mechanical self-locking performance, excellent stability and reliability. The explosion-proof infrared integrated instrument explosion-proof grade and temperature group have reached the highest requirements of national standards, can be applied to gas and dust explosion-proof environment. EX420 has a mechanical wiper, and the window has nano glass self-cleaning function, which has good anti-fouling ability.

Model:Ex420

Air pressure: 80KPa～106KPa

Ambient temperature: –25℃～+60℃

Relative humidity: ≤95% (+25℃)

Explosion-proof mark: Ex dⅡC T6 Gb/Ex tD A21 IP68 T80℃

Protection level: IP68

Working voltage: AC85V~265V (or customized other voltage specifications)

Current: ≤500mA

Speed: Level: 0º～45º/S Tilt: 0º～45º/S

Rotation angle: horizontal: 360º continuous rotation

Tilt: +90º/-90°

Communication method: RS-485 half duplex

Communication protocol: pelco-D pelco-P according to customer requirements

Communication rate: 2400～19200bps adjustable

Output mode: AV /RJ45Preset position: 128, accuracy ≤0.1º

Dimensions: 50cm (length) X30cm (width) X38cm (height)

Number of outlet holes: 1-G3/4 or M25Weight: ≈30KG

Manufacturing material: 316L stainless steel (used in ocean, tanker, and chlorine environment)

304 stainless steel (for chemical industry, outdoor, acid and alkali environment)

45# carbon steel surface treatment (not considering corrosion-resistant environment)

Installation method: wall installation, column or platform installation

Camera: optional

Other enhanced configurations:

Automatic cooling: non-standard configuration

Lightning protection module: non-standard configuration (to add lightning protection, a lightning protection control box must be installed)Transmission part heating: non-standard
