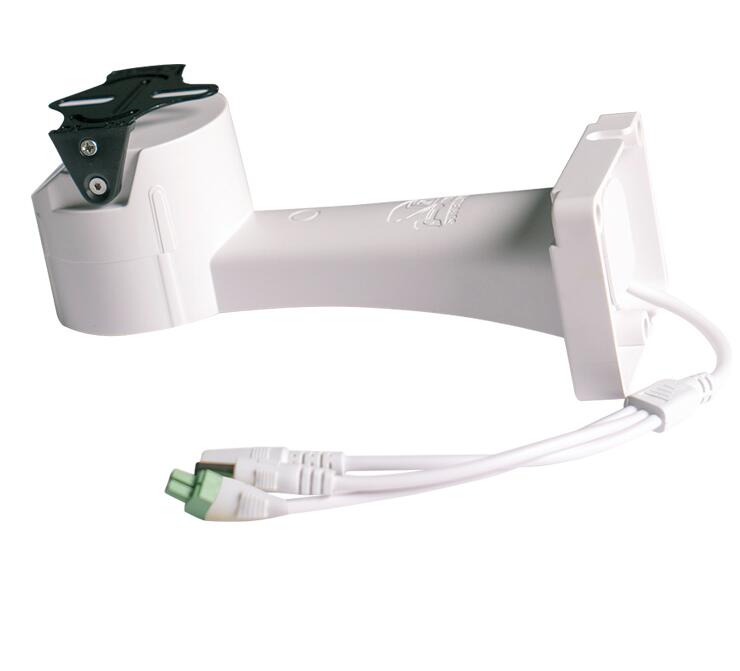

RS485 controlling wall mount rotating cctv Bracket

Feature:

1. Built-in smart decoder, smart presetting position, smart cruising function, watch area function;

2. Particular customized high quality durable motor, work steadily and long lifetime;

3. 12V power supply + 485 control, can quickly connect to 485 line and 12V output of HD cameras;

4. No need wiring, you can easily upgrade HD cameras into rotatable function;

5. Tightness screws: use metal to make screws, good quality technology, rustproof

6. Waterproof, dustproof, heat-resistant: all-weather waterproof, dustproof and heat-resistant good quality project, plastic housing design;

7. Only 170mm long, easy and convenient to install, compatible with all HD IP cameras and analogue on the market;

8. Can perfectly match with HD IP cameras, directly connecting to 485 line of network module is ok;

9. Particular suitable for indoor, expansion visual field of fixed cameras meanwhile increase definition

Model	A-485
Horizontal Rotation Angle	255degree
Rotation Speed	Horizontal rotation speed 6degree, 12degree,20degree
Limit	Left and right electronic limit, can be arbitrarily set
Limit Automatic Scan	Have, three degrees rotation speed adjustable
Presetting Bit	Have, 8 pcs of presetting bits
Presetting Bit Cruising	Have, 1 pcs of presetting bit cruising line, three degree rotation speed adjustable
Watch Area Function	Have
Manual Homing Function	Have
Control Mode	RS485
Bearing Capability	3kg
Interface	DC Power+RS485
Power Supply	DC 12V±5%/100mA
Power	0.9W
Working Environment	-25degree C-55degree C, humidity<95%(without condensation)
