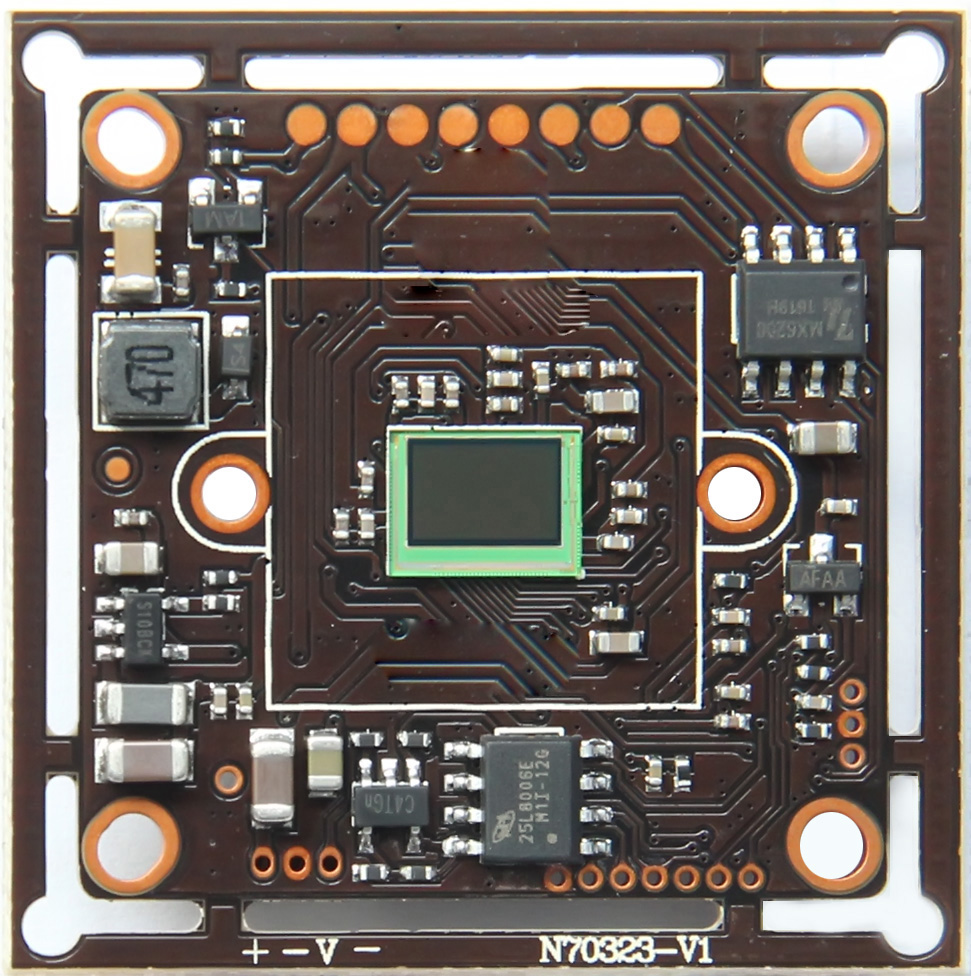

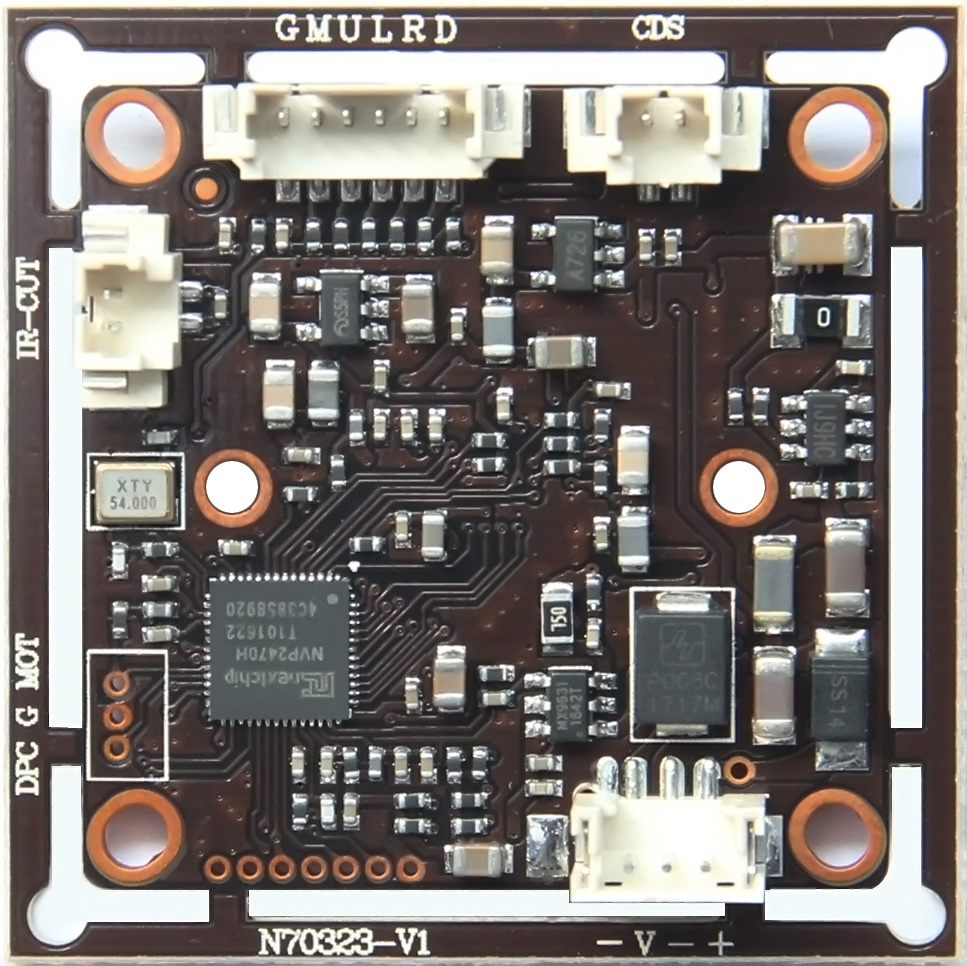

1080P 2MP Sony IMX323 AHD CMOS Camera Module
1080P 2MP Sony IMX323 CMOS Camera Module
Features:
Adopt SONY IMX323 2mp
low illumination CMOS,capture moving images
Support Coaxial high-definition output,Excellent performance,clear
and bright picture
Lux:0.01Lux@(F1.2,AGC ON)，0LUX with IR
Support IR-CUT,CDS external control ,D/N
Support OSD
Support DWDR
Adaptive Digital Noise Reduction,2D-DNR
Support UTC function
|
Model |
A-MC2370 |
|
|
|
2mp 3 in 1 Coaxial high-definition camera Module |
|
|
Detail Specifications |
||
|
Sensor |
1/2.9＂ IMX323 + NVP2470H |
|
|
System |
PAL/NTSC |
|
|
Effective Pixel |
1920(H)x1080(V) |
|
|
Illumination |
0.01Lux@(F1.2,AGC ON)，0LUX with IR |
|
|
Shutter |
AUTO |
|
|
D/N |
EXT（Default）/AUTO/COLOR/B/W |
|
|
Synchronously |
Internal |
|
|
FPS |
1080P@25fps / 1080P@30fps |
|
|
Video output |
AHD/TVI/CVI switch |
|
|
OSD Menu |
||
|
Exposure |
Shutter/AGC/Brightness/DWDR |
|
|
Backlight |
Off/BLC/HLC |
|
|
WB |
ATW /AWC-SET/Indoor/Outdoor/ MWB |
|
|
D/N mode |
External Switch /Auto/Color/B&W |
|
|
DNR |
2D-DNR |
|
|
Function |
Mirror/DPC/Language |
|
|
Adjustment |
Sharpness/LCD/LSC/Output mode |
|
|
Exit |
Save & exit/Reset/Not saved |
|
|
Language |
CHN1/CHN2/German/French/Spanish/Polish/Russian/ |
|
|
General |
||
|
Operation temperature |
-20℃ - 60℃ |
|
|
Working humidity |
Relative humidity less than90 % |
|
|
Power |
DC12V(±20%) - 50MA |
|
|
Size |
32*32/38*38（mm） |
|
