5MP Sony IMX326 camera module 4 in 1 ahd camera pcb board
Use Sony IMX326 5million progressive scan CMOS capture moving images.
Multi-resolution(5mp/4mp) AHD.
Excellent performance, clear and bright picture.
0.1Lux@(F1.2,AGC ON)，0LUX with IR.
Support IR-CUT，CDS external control，D/N
Support OSD ,Suitable for user-defined Settings.
Support DWDR.
Support UTC .
Products
Products DETAILS

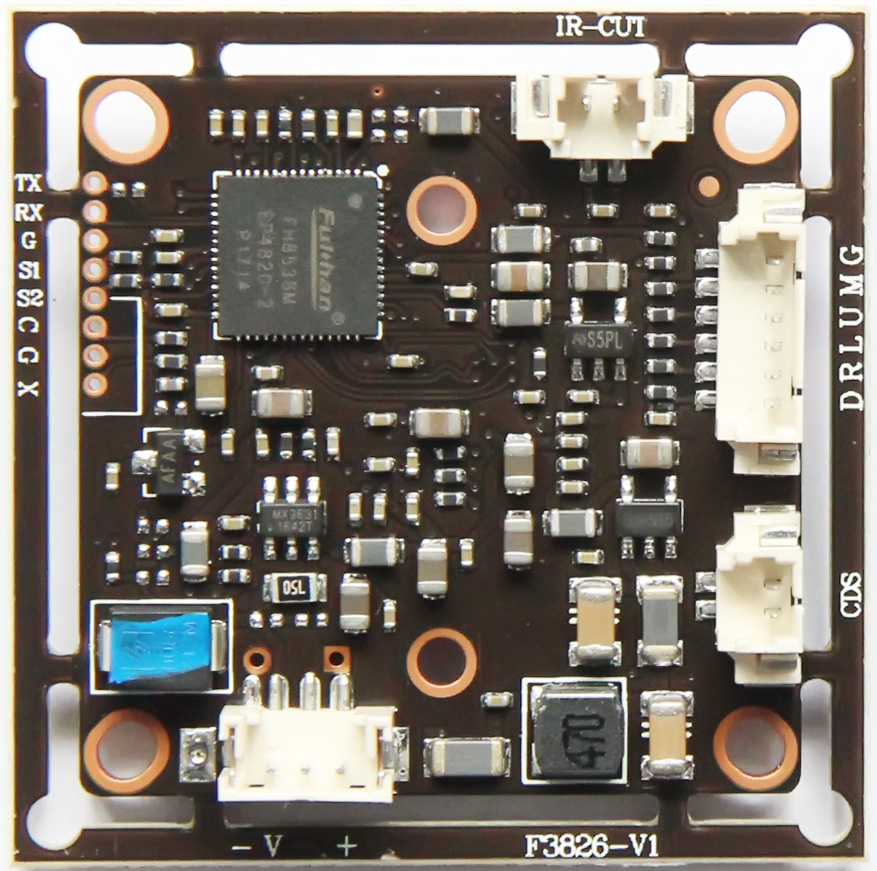

5MP Sony IMX326 camera module 4 in 1 ahd camera pcb board
5MP Sony IMX326 camera module 4 in 1 ahd camera pcb board
Features：
Use Sony IMX326 5million progressive scan CMOS capture moving images.
Multi-resolution(5mp/4mp) AHD.
Excellent performance, clear and bright picture.
0.1Lux@(F1.2,AGC ON)，0LUX with IR.
Support IR-CUT，CDS external control，D/N
Support OSD ,Suitable for user-defined Settings.
Support DWDR.
Support UTC .
|
Model |
A-MC5326 |
|
Product name |
5mp/4mp Multi-resolution AHD Camera Module |
|
Detailed Spec. |
|
|
Sensor |
1/2.9＂IMX326+FH8538M |
|
System |
PAL/NTSC |
|
Effective Pixel |
2560(H)x1920(V) 5mp 4：3 |
|
Illumination |
0.1Lux@(F1.2,AGC ON)，0LUX with IR |
|
Shutter |
AUTO |
|
D/N |
EXT（Default）/COLOR/B/W |
|
Synchronously |
Internal |
|
FPS |
5MP@20fps/4MP@25fps / 4MP@30fps |
|
Video output |
AHD/TVI/CVI can be switch |
|
OSD Menu |
|
|
Exposure |
Shutter/AGC/Brightness |
|
AWB |
ATW/MWB |
|
DAY-NIGHT |
INFRARED/COLOR/B&W |
|
Video Setting |
Contrast/Sharpness/Color Gain/DNR |
|
Language |
Chinese/English |
|
Reset |
|
|
Common Spec. |
|
|
Operation Temperature |
-20℃ to 60℃ |
|
Working Humidity |
Relative humidity less than90 % |
|
Power |
DC12V(±20%) - 70MA |
|
Size |
32*32/38*38（mm） |
