1/3" AHD TVI CVBS 4MP CMOS OV4689+NVP2475H AHD CCTV module

adpot OV4689 4 million progressive scan CMOS, capture moving images. AHD Excellent performance, clear and bright picture. Lux:0.1Lux@(F1.2,AGC ON)，0LUX with IR. Support IR-CUT,CDS external control ,D/N. Support OSD,Suitable for user-defined Settings. Support DWDR. Adaptive Digital Noise Reduction,2D-DNR. Support UTC function .

Send Email:

[email protected]

Products

Products DETAILS

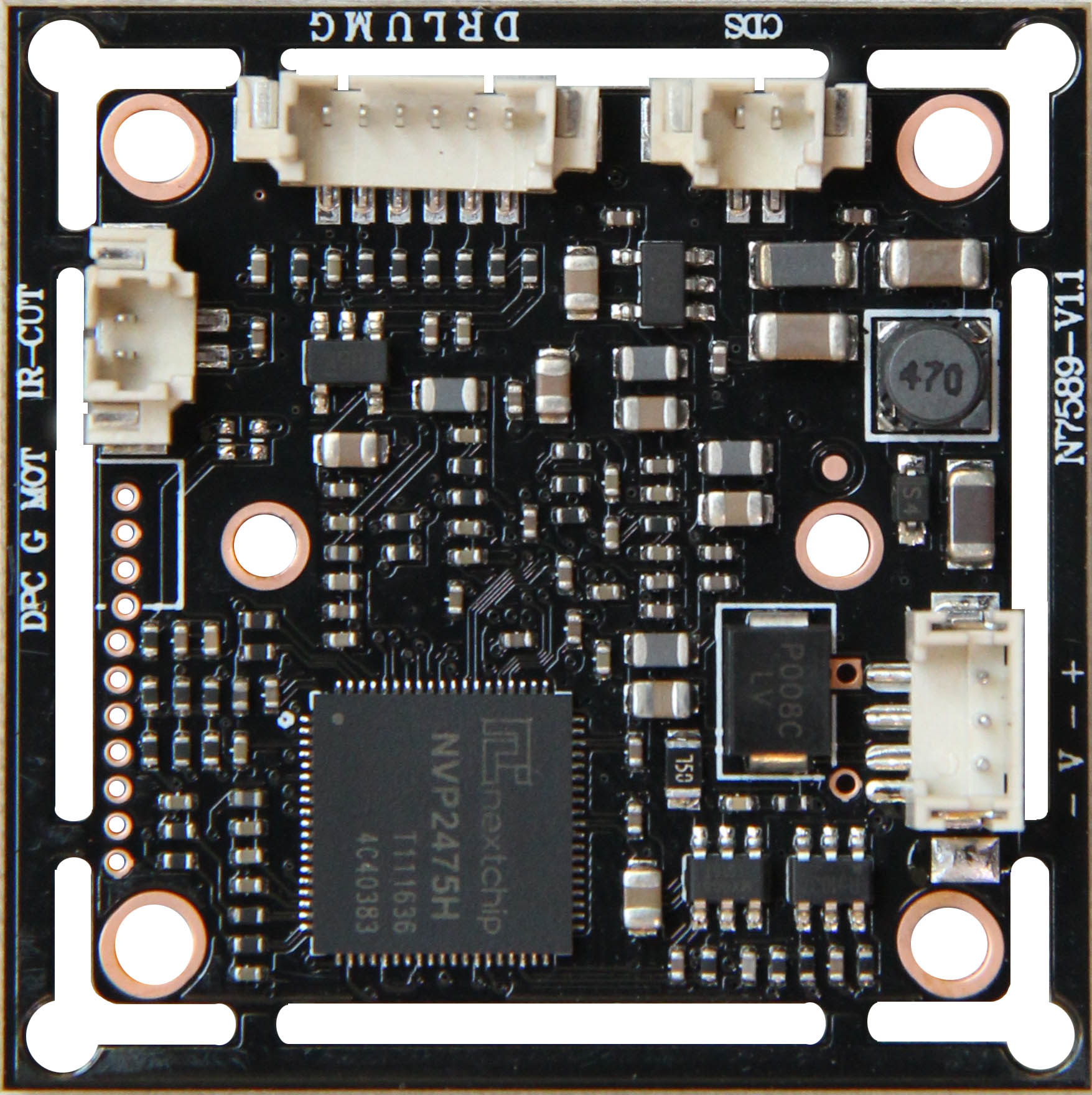

1/3" AHD TVI CVBS 4MP CMOS OV4689+NVP2475H AHD CCTV module

Features：

adpot OV4689 4 million progressive scan CMOS,
capture moving images.
AHD Excellent performance, clear and bright picture.
Lux:0.1Lux@(F1.2,AGC ON)，0LUX with IR.
Support IR-CUT,CDS external control ,D/N.
Support OSD,Suitable for user-defined Settings.
Support DWDR.
Adaptive Digital Noise Reduction,2D-DNR.
Support UTC function .

Model	A-MC4690
Product name	4MP AHD HD camera module
Detailed Spec.
Sensor		1/3＂ OV4689+NVP2475H
System		PAL/NTSC
Effective Pixel		2688(H)x1520(V)
Illumination		0.1Lux@(F1.2,AGC ON)，0LUX with IR
Shutter		AUTO
D/N		EXT（Default）/AUTO/COLOR/B/W
Synchronously		Internal
FPS		4mpP@25fps / 4mp@30fps
Video output		AHD HD
OSD Menu
Exposure		Shutter/AGC/Brightness/DWDR
Backlight Mode		OFF/Backlight/HSBLC
B/W		ATW/AWC-SET/Indoor/Outdoor/Manual
D/N Mode		EXT（Default）/AUTO/COLOR/B/W
DNR		2DNR
Special		Mirror/LIVE DPC/Language
Adjust		Sharpness/Display Screen/Edge DPC/Output Mode
Exit		SAVE&END/Reset/Not Save
Language		CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG
Common
Operation Temperature		-20℃ to 60℃
Working Humidity		Relative humidity less than 90 %
Power		DC12V(±20%) - 50MA
Size		3232/3838（mm）
