Shenzhen Acedo Electronics Technology Co., Ltd
5MP AHD/TVI/CVI/Analog board camera
adopt 5MP CMOS，captured moving images. Support AHD/TVI/CVI Coaxial high-definition output, with excellent performance, clear and bright picture Lux: 0.01Lux@(F1.2,AGC ON)，0LUX with IR Support IR-CUT，CDS external control , D/N. Support DWDR Support OSD and Customization Adaptive Digital Noise Reduction, 2D-DNR Support UTC 6KV
Products
Products DETAILS

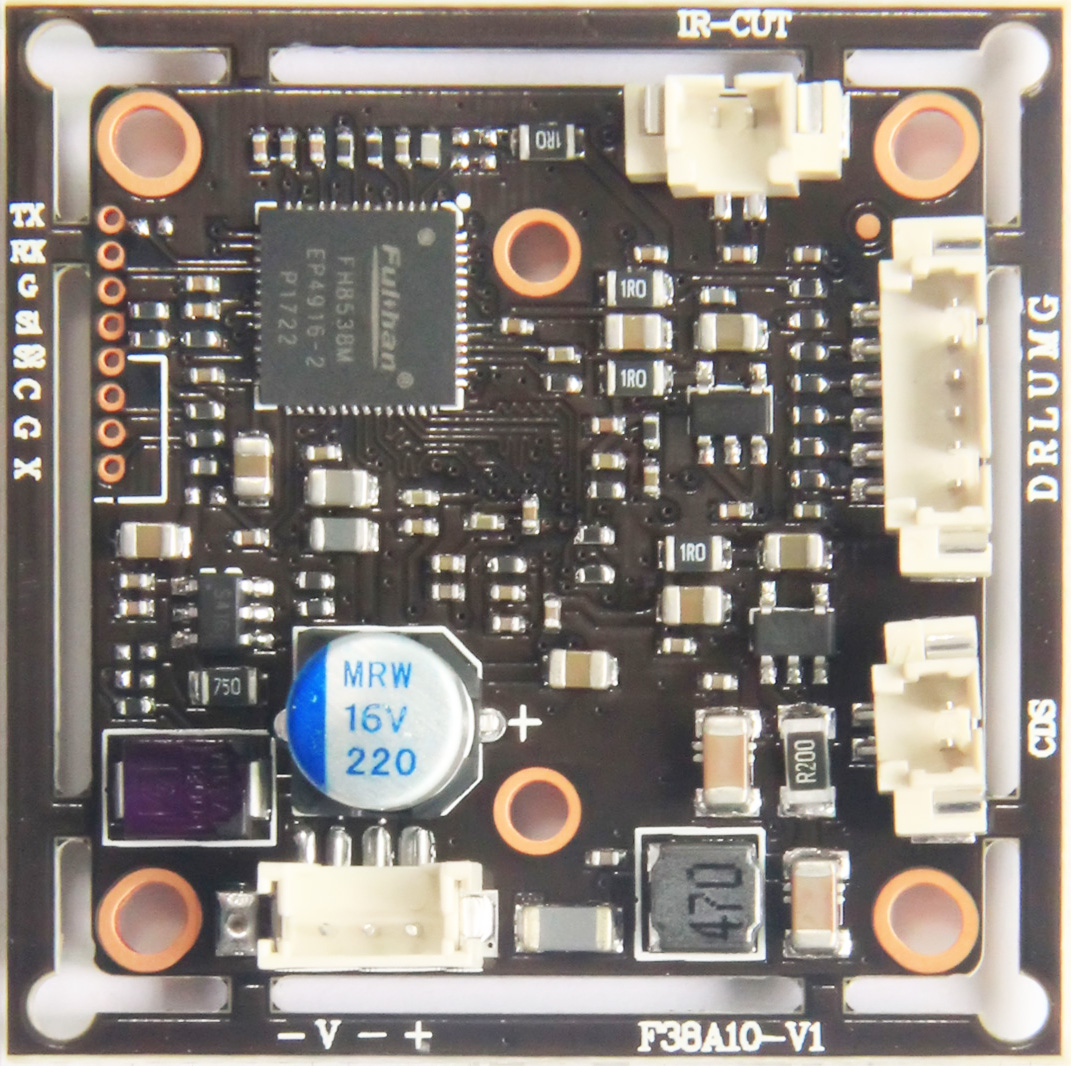

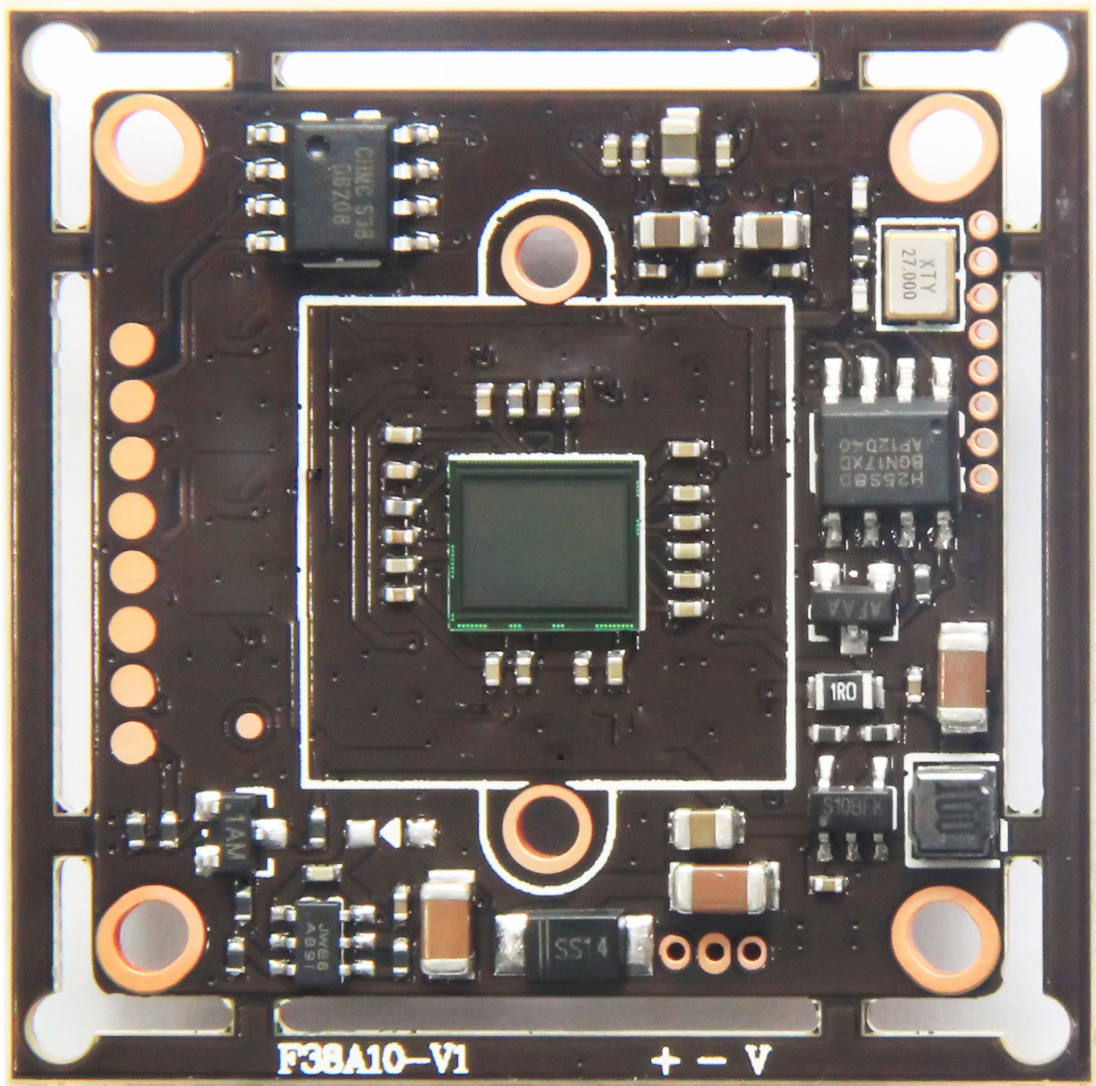

5MP AHD/TVI/CVI/Analog board camera
Features:
adopt 5MP CMOS，captured moving images.
Support AHD/TVI/CVI Coaxial high-definition output,
with excellent performance, clear and bright picture
Lux: 0.01Lux@(F1.2,AGC ON)，0LUX with IR
Support IR-CUT，CDS external control , D/N.
Support DWDR
Support OSD and Customization
Adaptive Digital Noise Reduction, 2D-DNR
Support UTC
6KV
Model
A-CM5020
Specifications
Sensor
1/2.7＂OS05A10+FH8538M
System
PAL/NTSC
Effective pixels
2560(H)x1920(V) (5MP 4：3)
Illumination
0.01Lux@(F1.2,AGC ON)，0LUX with IR
Shutter
AUTO
D/N
EXT（Default）/COLOR/B/W
Synchronously
Internal
FPS
5MP@20fps/12.5fps / 4MP@25fps/30fps/15fps
Video output
AHD（5MP20/12.5/4MP25/30/15），CVBS(PAL/NTSC)
OSD menu
Exposure
BRIGHTNESS / EXPOSURE MODE
/ GAIN
BW
ATW/MWB
D/N MODE
Infrared/COLOR/B&W
Video Setting
Contrast/Sharpness/COLOR GAIN/DNR/D-WDR-Mirror
Language
CHINESE/ENGLISH
Reset
NA
Common
Operation Temperature
-20 to
60 Degree
Operation humidity
Relative humidity less than 90 %
Power
DC12V(±20%) - 90MA
Dimension
32*32/38*38（mm）
2560(H)x1440(V) 4MP(16：9)
TVI（5MP20/12.5/4MP25/30/15），CVI（4MP25/30）
