13.0MP Sony IMX258 auto focus USB camera module with audio

Sony IMX258 sensor

built-in MIC

auto focus lens

16.0MP high resolution

Send Email:

Products

Products DETAILS

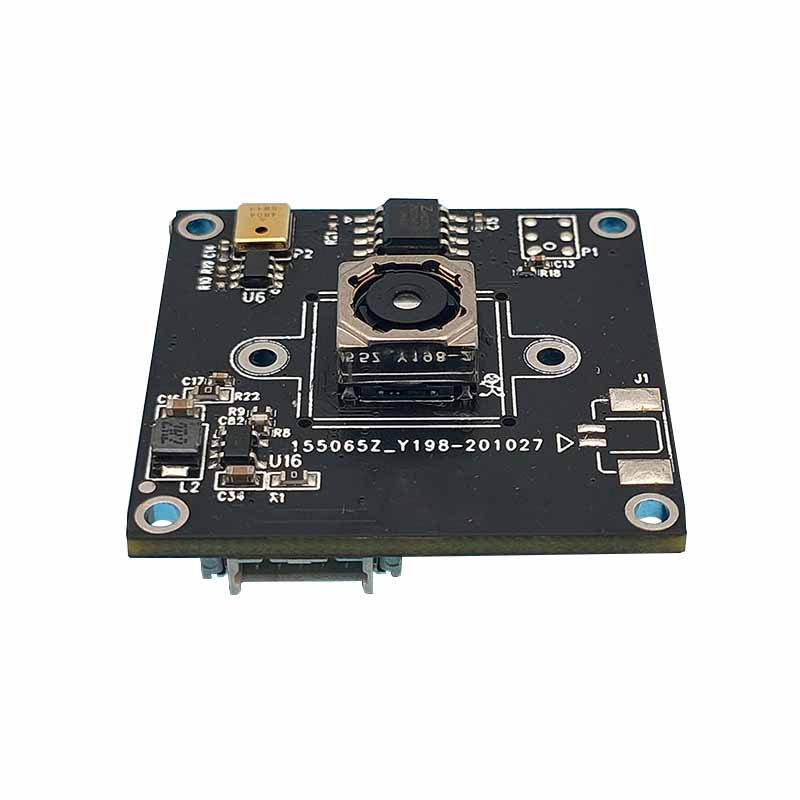

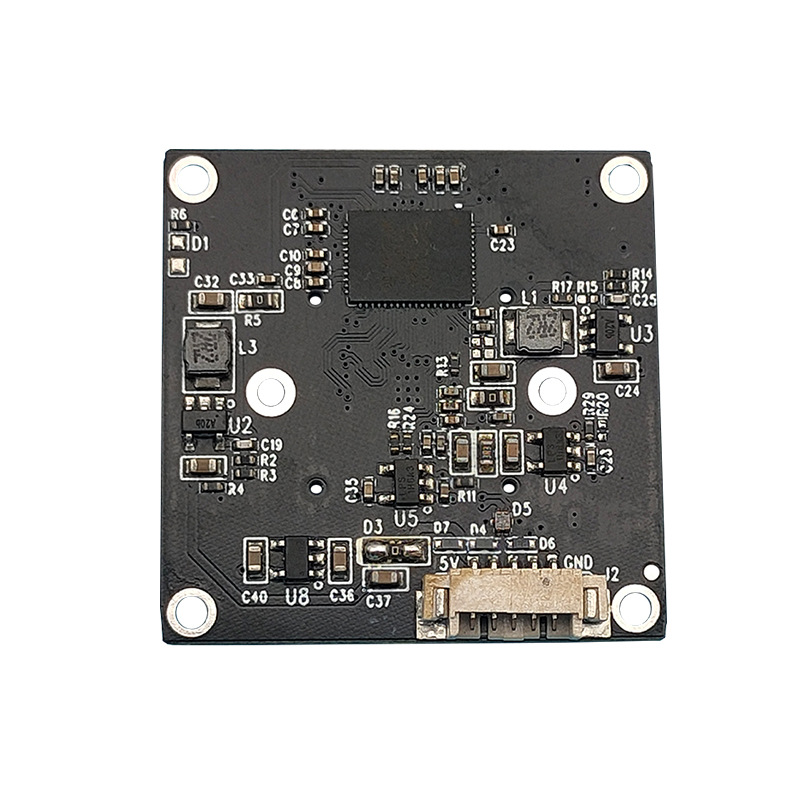

13.0MP Sony IMX258 auto focus USB camera module with audio


Model

A-UMC1310

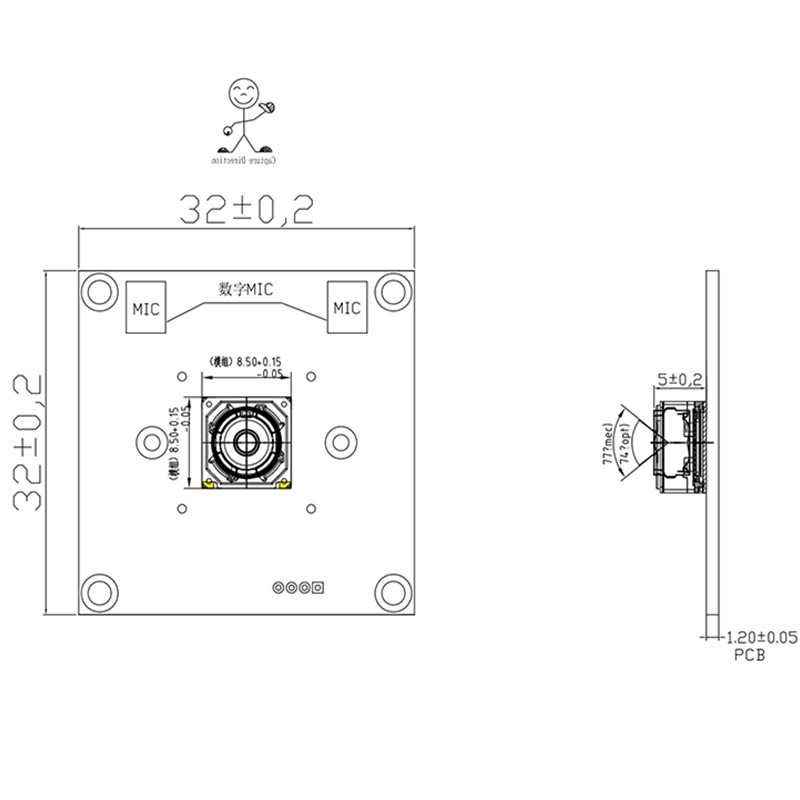

Module Size

32.00mmx32.00mmx6.2mm

Temperature(Operation)

-10℃ to 60℃

Temperature(Storage)

-20℃ to 70℃

Assembly technique

SMT(ROHS)

Object distance

30CM-3m

PCB printing ink PCB

black

USB power supply voltage

DC5V

Interface

USB2.0 5P 1.25mm SMD

mic

yes

Operating system request

Win XP/Win 7/ Linux2.6.20

Package

Anti-electrostatic tray

Sensor Type

(1/3.06) IMX258

Array Size

1300((GDR)

Max Dynamic range

TBD

Pixel Size

1.12m x 1.12um

Maximum Image Transfer Rate

1080P 30FPS:13M 30FPS

Package

CSP

Lens Type

1/3.06 inch

Lens Construction

5P+IR

F/No

2.0

EFL

3.5mm

FOV

D=78H=66V=52

TV Distortion

<1%

IR Filter

65010nm

AGC/AEC/Whiter balance/

Auto

Support the compression formats

MJPEG,YUY2
