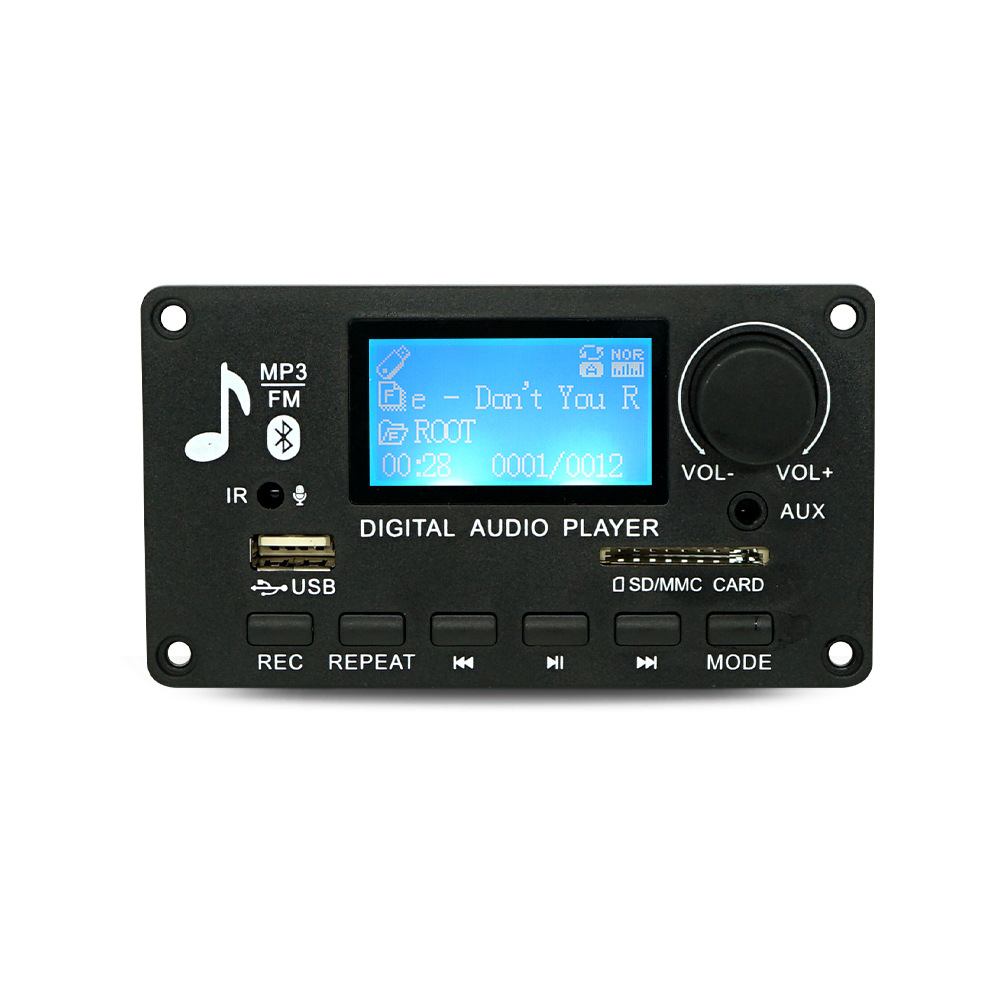

MP3 player with LCD screen FM bluetooth remote controller

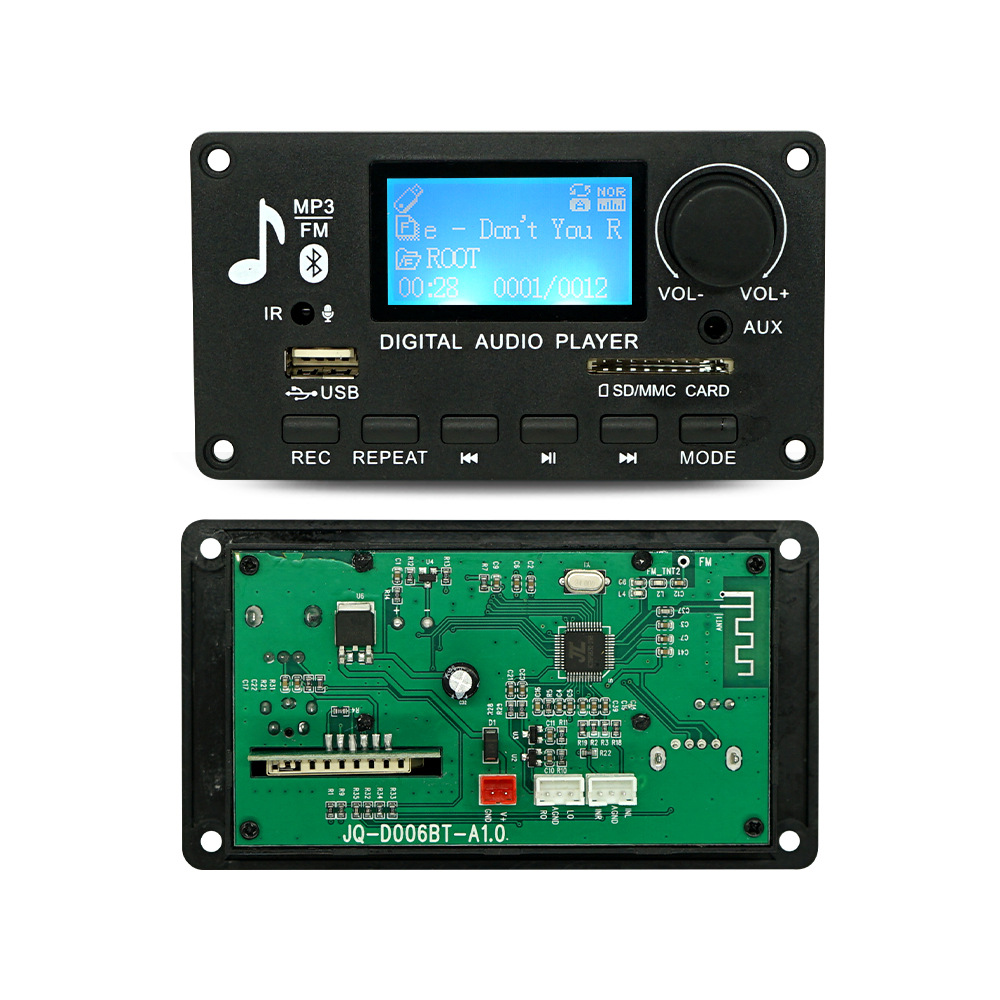

Product name: MP3 decoding Bluetooth LCD module

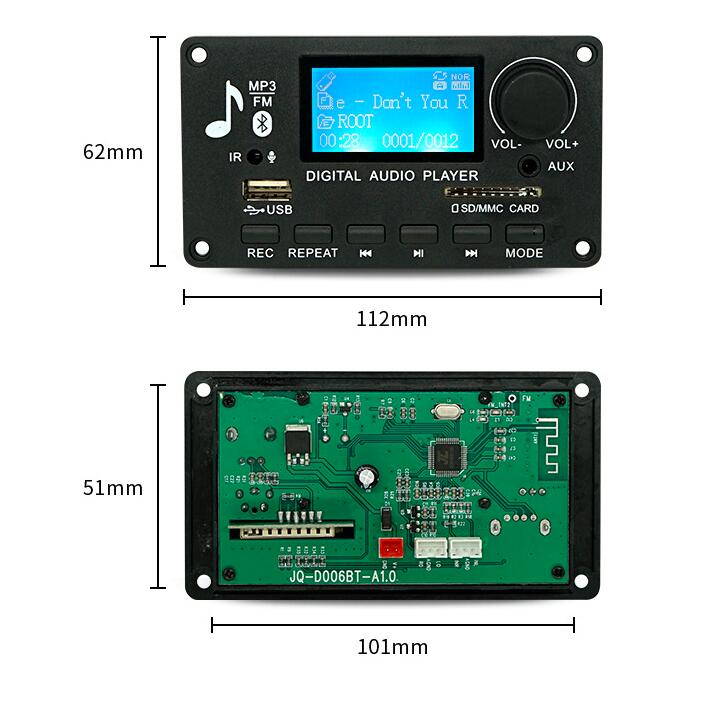

Case size: 112x62mm

Assembly hole size: 101x51mm

Product function: Bluetooth+FM+AUX+lossless decoding+USB+TF card+MIC recording+folder switching

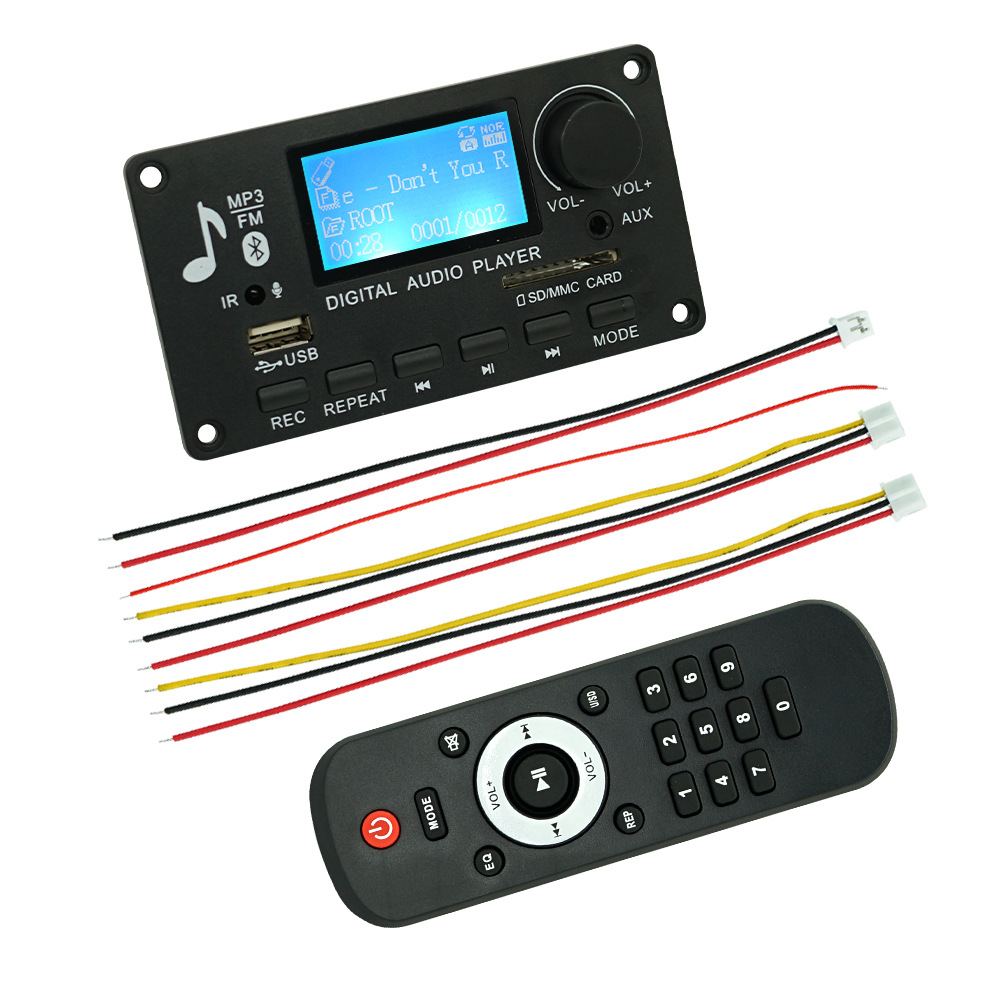

Accessories: Film remote control+2P power cord+3P audio output cable+3P audio input LINE IN cable

Packaging: 270pcs/box; OPP bag single set packaging




I. Main functions

1. Jerry solution, dual decoding supports music in MP3/WMA/WAV/FLAC/APE lossless audio decoding formats;

2. Support Bluetooth function, Bluetooth version 5.0;

3. Display screen: LCD screen display;

4. Support MMC/SD/MMA and other cards, support USB interface (U disk);

5. Power supply voltage: DC12V, power-off memory function (memory songs, volume, function mode);

6. Support 10-meter infrared remote control operation;

7. Support external sound source input LINE IN;

8. Support FM radio, search frequency band (87.5MHZ-108.0MHZ);

9. Buttons: six buttons for multi-directional control, PLAY / PREV / NEXT / REPEAT / REC / MODE;

10. Support external recording of external sound and internal recording of AUX / FM / BT playback sound to USB or TF card;

11. Support folder FOLDERS switching function;



II. Button operation details

1. REC: recording mode, with USB flash drive or TF card plugged in, short press the REC button to record external sound for the microphone MIC;



2. REPEAT (Repeat): Press once in MP3 mode for single song repeat function, press again to cancel repeat function;



3. PREV button (previous song/volume down): In MP3 mode, short press PREV for previous song, long press for volume down, short press for up one station number in FM mode;



4. PLAY button (play/pause): In MP3 mode, short press PLAY for play/pause, short press for play/pause in FM mode, long press for automatic reception and storage of stations;



5. NEXT button (next song/speaker up): In MP3 mode, short press NEXT for next song, long press for volume up, short press for down one station number in FM mode;



6. MODE button (analog): Switch between USB/TF/FM/audio input/Bluetooth in sequence;
