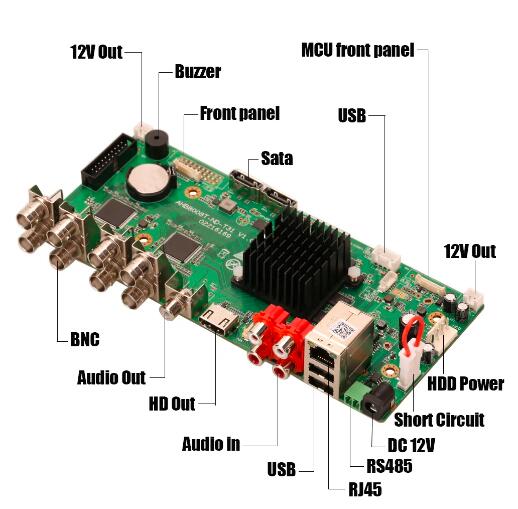

4K 8 channel multi-signal input hybrid AHD network DVR board

System

Model

A-XVR8008

Chip

NT98336

Preview

1/4/8/9

Video

Video input

8CH BNC

Codec

H.265/H.264 (H.265 is based on the camera)

Display

Quality

Max 4K

PreView

Quality

8*4K/8MP@15fps(6 in 1)

8*5M@20fps(6 in 1)

8*4M(6 in 1)

8*3M(6 in 1)

8*1080P(XVI)

Default:8MP/4K

Encode

Quality

8*4K/8MP@8fps(6 in 1)

8*5M@14fps(6 in 1)

8*4M@18fps(6 in 1)

8*3M@21fps(6 in 1)

8*1080P(6 in 1)

Default:8M

Decode

Quality

8*4K/8MP@8fps(6 in 1)

8*5M@14fps(6 in 1)

8*4M@18fps(6 in 1)

8*3M@21fps(6 in 1)

8*1080P

Default:8M

Multi-mode

input

Analog: 8*4K/8MP

hybrid: 8*4K/8MP(analog)+8*4K/8MP(network)

Network: 16*4K/8MP; 16*5MP

Motion

detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set

(Limited local channel)

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Audio

Audio

Compression

711A

Intercom

Support

Motion Detection

Support

Human Detection

Support

Face Detection

Support

Car Detection

Support(Need buy)

Record &

Playback

Search mode

Search by time, calendar, event, channel

Local Playback

8CH

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

Video output

1ch VGA,1ch HDMI-Compatible HD output

Audio I/O

1/1

External interface

3G/WIFI

Support 7601 Adapter (Not include)

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports(Not support the keyboard)

Sata

2*SATA(Up to 14TB for each disk)

ESATA

Not Support

Power supply

12V/4A (Adapter is not include)

Other

Power Consumption

<10W(Without HDD)

Work environment

Temperature:-20℃-65℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Dimension

L201*W86mm

Weight

A total of about 205g

Wifi adapter

 Can add additionally for wireless function or ignore
