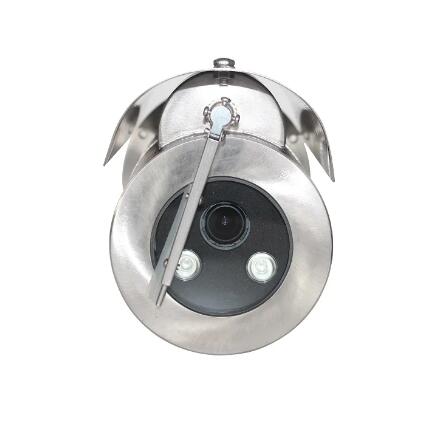

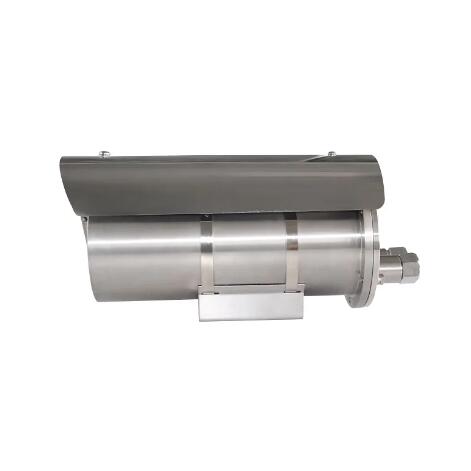

4.0MP explosion-protected varifocal surveillance video camera with sunshield & wiper

Camera

Image Sensor:

1/1.8" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter time:

1/3 s to 1/100,000 s

Slow shutter:

Support

Lens:

2.8 mm -12 mm

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Focus:

2.8-12mm 4X Zoom

Compression Standard

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate:

256Kbps~16Mbps

Triple Streams:

Yes


Max. Image Resolution:

2560 × 1440

Frame Rate:

50Hz:25fps (2560X1440,1920 × 1080)

60Hz: 30fps ( 2560X1440,1920 × 1080)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR/ROI/HLC

Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Target Cropping:

No

ROI:

1 fixed region for main stream and sub-stream

Day/Night Switch:

Day/Night/Auto/Schedule

Network

Network Storage:

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger:

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy

mask, Watermark, IP address filtering

System Compatibility:

ONVIF (Profile S, Profile G),ISAPI

Interface

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

Reset Button:

Yes

Smart Feature-set

Behavior Analysis:

Line crossing detection, intrusion detection

Line Crossing Detection:

Cross a pre-defined virtual line

Intrusion Detection:

Enter and loiter in a pre-defined virtual region

Recognition:

Face Detection

General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:

12 VDC, 0.5A, max. 6W

PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W

Protection:

Ingress protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013) Explosion-proof: ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68

IR Range:

Up to 100m

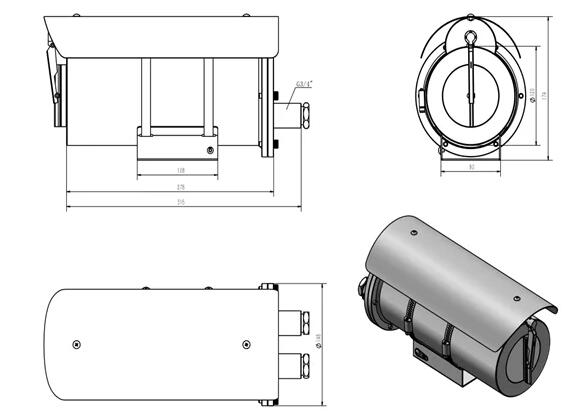

Dimensions:

Camera: Φ 243.5 × 346mm

Weight:

Camera: Approx. 6000 g

With Package: Approx. 8000g
