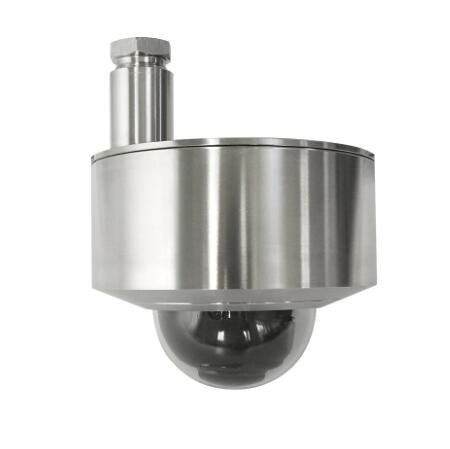

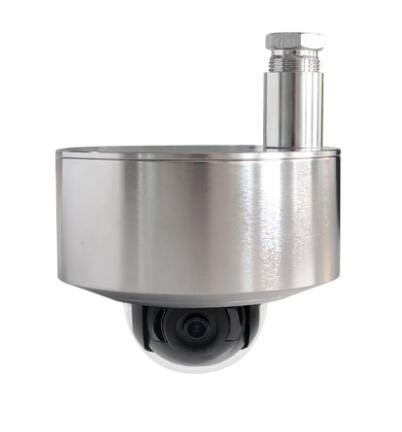

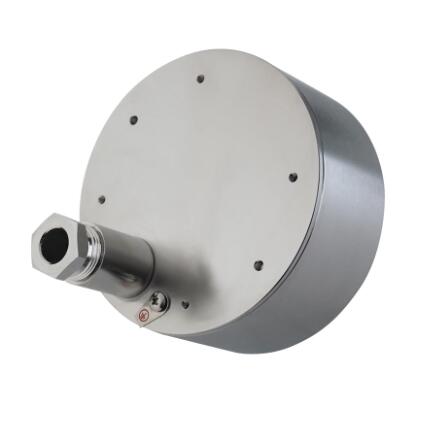

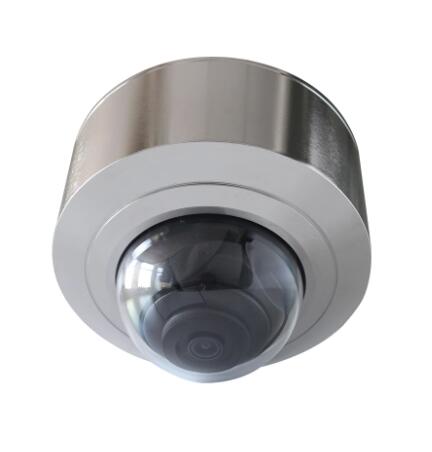

8.0MP 4K explosion proof network dome video camera with face detection
1/3" Progressive Scan CMOS 3840 ×2160@30fps 2.8/4/6mm fixed lens Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR H.265+, H.265, H.264+, H.264 Three streams 120dB WDR 2 Behavior analyses, and face detection BLC/3D DNR/ROI/HLC IP68
Products
Products DETAILS
8.0MP 4K explosion proof network dome video camera with face detection
Features:
1/3" Progressive Scan CMOS
3840 ×2160@30fps
2.8/4/6mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
BLC/3D DNR/ROI/HLC
IP68
Camera |
|
Image Sensor: |
1/3" Progressive Scan CMOS |
Signal System: |
PAL/NTSC |
Min. Illumination: |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Shutter time: |
1/3 s to 1/100,000 s |
Slow shutter: |
Support |
Lens: |
4 mm F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° |
6 mm F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° |
|
2.8 mm F1.6: horizontal FOV: 92°, vertical FOV: 60°, diagonal FOV: 105° |
|
Lens Mount: |
M12 |
Adjustment Range: |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Day& Night: |
IR cut filter with auto switch |
Wide Dynamic Range: |
120 dB |
Digital noise reduction: |
3D DNR |
Focus: |
Fixed |
Compression Standard |
|
Video Compression: |
H.265+/H.265/H.264+/H.264/MJPEG |
Video bit rate: |
256Kbps~16Mbps |
Triple Streams: |
Yes |
Image |
|
Max. Image Resolution: |
340× 2160 |
Frame Rate: |
50Hz:25fps (3840x2160,1920 × 1080) |
60Hz: 30fps ( 3840x2160,1920 × 1080) |
|
Sub Stream: |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Third Stream: |
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
Image Enhancement: |
BLC/3D DNR/ROI/HLC |
Image Settings: |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
Target Cropping: |
No |
ROI: |
1 fixed region for main stream and sub-stream |
Day/Night Switch: |
Day/Night/Auto/Schedule |
Network |
|
Network Storage: |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger: |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols: |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function: |
|
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
|
mask, Watermark, IP address filtering |
|
System Compatibility: |
ONVIF (Profile S, Profile G),ISAPI |
Interface |
|
Communication Interface: |
1 RJ45 10M / 100M Ethernet interface |
Reset Button: |
Yes |
Smart Feature-set |
|
Behavior Analysis: |
Line crossing detection, intrusion detection |
Line Crossing Detection: |
Cross a pre-defined virtual line |
Intrusion Detection: |
Enter and loiter in a pre-defined virtual region |
Recognition: |
Face Detection |
General |
|
Operating Conditions: |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) |
|
Power Supply: |
12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: |
12 VDC, 0.5A, max. 6W |
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W |
|
Protection: |
Ingress protection: IK08 (IEC 62262:2002), IP68 (IEC 60529-2013) Explosion-proof: ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 |
IR Range: |
Up to 30m |

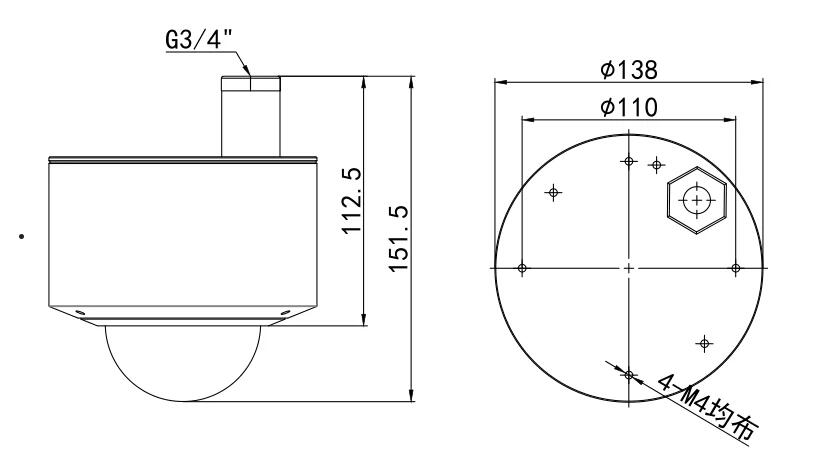

Dimensions: |
Camera: Φ 138 × 151.5mm |
Weight: |
|
Camera: Approx. 5500 g |
|
With Package: Approx. 6000g |
