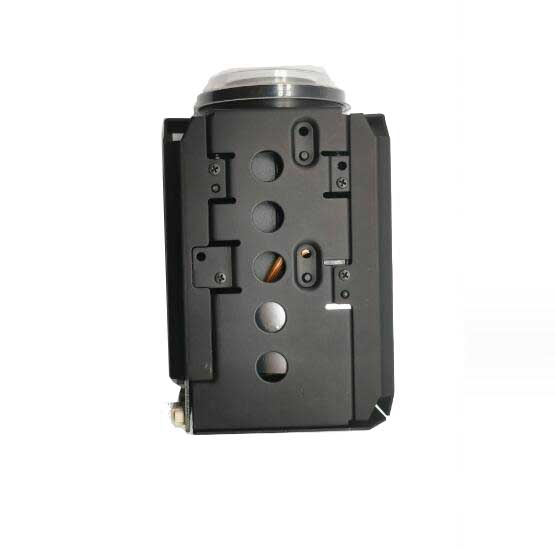

AHD zoom camera module with 18x optical zoom

Model

A-AZC1821

A-AZC1820

Sensor

1/3" APTINA  CMOS

1/2.8" SONY  CMOS

Video Standard

PAL/NTSC

FPS

50Hz:25fps(1280*720)

60Hz:30fps(1280*720)

50Hz:25fps(1920*1080)

60Hz:30fps(1920*1080)

Min. Illumination

Color: [email protected],  B/W: [email protected]

Electronic  Shutter

1/1 ~ 1/30000s

Day/Night

Support IR-CUT

Scan System

Row by row

Synchronous

Internal synchronous

S/N Ratio

>50dB（AGC Off，Weight ON）

Iris Control

Auto

Backlight compensation

Open/Close

White Balance

Auto

Exposal Mode

Auto

Privacy Masking

Support

WDR

N/A

Gain Setting

Support

Menu

Flip / Mirror

Gain Control

Auto

Sharpness Adjustment

Support

Focusing

Auto/Manual/One-time auto-focus

Noise Reduction Level

0/1/2/3/4/5

Zoom Speed

4S

Focus Control

Manual/Auto

Lens Initialization

Built-in

Optical Zoom

18X, 4.7 to 84.6mm（F1.6 to F3.5）

Min.Focus distance

100mm ~1000mm (Close focus ~ Far focus)

Digital Zoom

N/A

Horizontal Angle of View

Level:  55.4~2.90

Network

N/A

Storage Environment

（-20°C ~+70°C/20﹪to 95﹪RH）

Working Environment

（-10°C ~ +60°C/20﹪ to 80﹪RH）

Power Supply

DC 9V-12V(suggest 12V)

Power Consumption

MAX:6W

Dimension(mm)

87.5mm x 50mm x 60mm

Weight

286g
