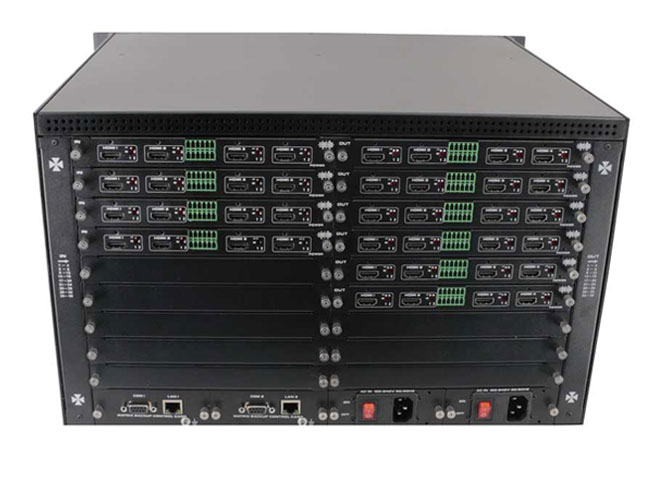

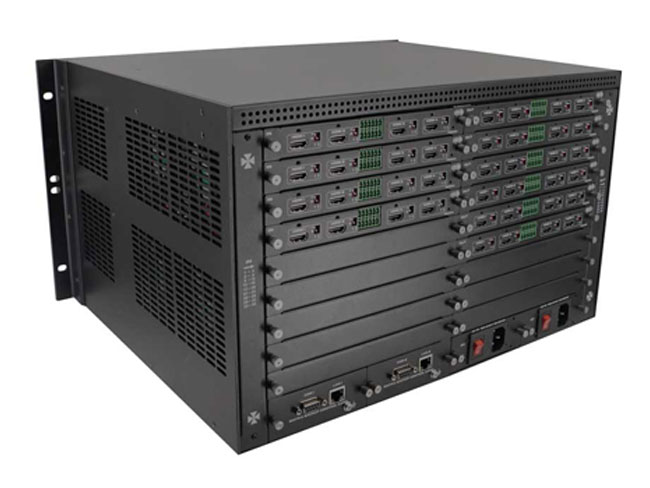

36x36 Hybrid modular video matrix switcher with EDID
This modular matrix switcher, with 36 input slots and 36 output slots, so it can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.
Products
Products DETAILS
36x36 Hybrid modular video matrix switcher with EDID
Description:
Modular HDMI Matrix switcher 36x36 is a modular matrix switcher, with 36 input slots and 36 output slots,
Modular HDMI Matrix switcher can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDBasT, Fiber Optic, 3G-SDI.
Users are able to have mixed signals inputs and mixed signals outputs.
Modular HDMI Matrix switcher single
channel signal switching speed can reach 12.5Gbps, and modular HDMI Matrix switcher main board is using Four
core four links processing technology, the switching ability speed can reach
32Gbps. With uncompressed transmission technology for the digital signal to
make sure the image High fidelity output. Unique signal links shielding
designing technology to make sure the signal completeness, modular HDMI Matrix switcherinternal data
switch has super strong capacity of resisting disturbance and long continuous
and stable working ability. Modular
HDMI Matrix switcher supports 7*24 continuously working and with
dual LAN and RS232 backup control, Modular
HDMI Matrix switcher is convenient for users to control via
PC, iPad, APP and the 3rd parties central control by the the RS232 control
commands.
Modular HDMI Matrix switcher with the dual
RS232 and LAN control, users also can simply set up and control the surrounding
equipment, such as the projector, electric curtain and TVs.
Modular HDMI Matrix switcher have been
widely used in the conferencing, radio&television project, multimedia
conferencing hall, large screen display project, television teaching, command
control center and so on applications
Features:
Modular designing chassis, with 36 input slots and 36 input slots
·1-card 4-port input and output card
·Supports 1080P, 4K30 and 4K60 cards for selections
·Supports DVI-I/ HDMI/ 3G-SDI/ HDBaseT/ Fiber to mix input and output
·Support Video wall and seamless switching with the 1080P and 4K60 cards
·Support 3.5mm audio embedded and de-embedd function
·Support up/down scaling function via the DIP switch
·Support dual LAN and RS232 ports for backup control
·Front buttons with background lights, easier to operate at any time
·Support auto saving protection and auto recovery function while power cut
Model |
A-HM3636 |
|
Description |
36x36 modular matrix switcher |
|
Input |
1-card 4-port input, including DVI/HDMI/VGA/CVBS/SDI |
|
Output |
Support DVI/HDMI/VGA/SDI/HDBaseT output |
|
Protocol |
Support HDMI1.4,HDMI2.0, DVI1.0, HDCP1.4,HDCP2.2 |
|
Color Space |
Support RGB444, YUV444, YUV422 , x.v.C standard color extension |
|
Resolution |
640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDTV ) |
|
Distance |
HDMI/DVI: 15m/40ft ; HDBaseT: 70m/220ft; Fiber: 2km/6000ft |
|
Control |
iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light |
|
Dimension |
6U, 486*282*385(mm)/ 19.13*11.1*15.16(inch) |
|
Weight |
20kg/ 44lbs (No Cards) |
|
Power Supply |
AC:100-240V 50/60Hz |
|
Power consumption |
≤35W(no cards) |
|
Working Temperature |
0℃-50℃ |
|
Storage Temperature |
﹣20℃-55℃ |
