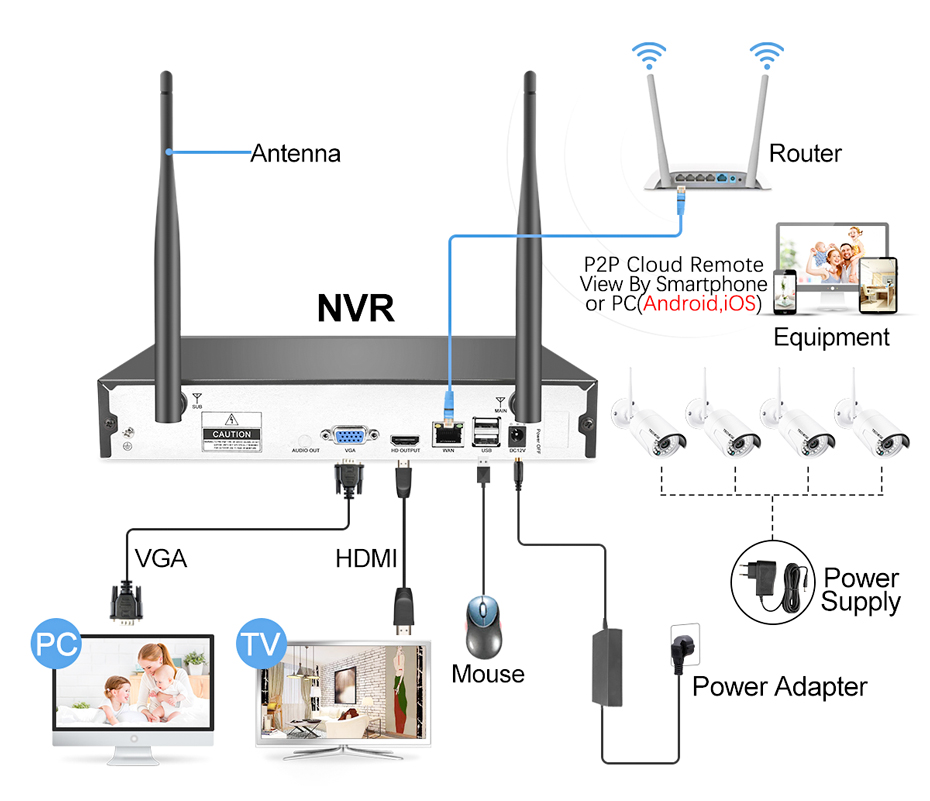

8-ch wireless IP camera system kit

This system kit include:

1PCS - 8CH WiFi Security NVR

4/8PCS - 1080P WiFi Wireless IP Bullet Camera

1PCS - 12V Power Supply for NVR

4PCS - 12V Power Supply for CCTV Camera

1PCS - Screw

1PCS - USB Mouse

1PCS - User's Manual

(the harddisk is optional, we can pre-install different volume as per your demand)

1-NVR Specification

Operating System	Embedded linux OS
Network Video	8CH
Network Video input	20Mbps broadbank
HDMI output	1ch, resolution: 1024x768, 1336x768 1440x900,1920x1080P,
VGA output	1ch, resolution: 1024x768,1336x768 1440x900,1920x1080P,
Video Resolution	DI/720P/960P/1080P
synch-playback	8CH
Video/Capture mode	Maual.Time.Motion.Alarm
Playback mode	Real time .Routine.Event
Record Resolution	Selectable:1080N/720P/960H
Backup	USB backup
HDD Type	1 x SATA interface
Max Capacity	4 TB at most for each
Network Interface	1 adaptable RJ45 10M/100M 2 WIFI interface,
USB Interface	1 USB 2.0
Protocol	UPnP(play&plug) SMTP(emailsurvice) PPPoE (dial-up).DHCP (Automatically Obtain an Ip address),etc...
Power	DC 12V 2A

2-Camera Specification

Operating System	Embedded linux
Image Sensor	1/2.8Progressive Scan Sensor
Audio	has built-in MIC, audio record
S/N Ratio	>39.1dB
Resolution	1920x1080 16:9 HD
Minimum Illumination	Color:0.1 Lux B/W:0.01 Lux
Lens	3.6mm
OSD	Dare Time &Title
White Balance	Auto
Day & Night	Auto/Color/BW
3D-DNR	Auto
Mirror/Flip	On/Off
Privacy Masking	4 Zone Selectable
Frame Specification	Three Steaming H.264 main stream 1920x1080/ sub stream 640x360@15fps or below
Power Input	DC12V-1A
