outdoor all-weather 30W white light low-temperature LED Supplement light
This 30W low-temperature LED Supplement light is a supplementary light device that uses high-quality high-power LED light source, a dedicated LED constant current drive power supply, and secondary optical design. Designed to provide auxiliary light sources for various surveillance video, license plate detection, image capture and other camera systems. It mainly solves the problem of black and white, defocus, noise and other problems in the images caused by insufficient illumination in safe city surveillance, road surveillance, factory surveillance and other cameras at night. Really realize all-weather color high-definition surveillance.
【Features】:
High-power LED light-emitting components have low power consumption, high luminous efficiency and long life (≥50000Hrs);
Die-cast aluminum casing with private mold low-temperature design, high thermal conductivity aluminum material, and ventilated thickened heat dissipation fins, which can effectively reduce the LED operating temperature;
The wide-width silicone waterproof ring and diversion groove design ensure excellent waterproof performance;
The first fill light respirator design, waterproof and breathable, balances the pressure difference between the inside and outside of the lamp, and eliminates fog;
Built-in light control switch can automatically switch working modes during the day and night;
The light control switch is equipped with a shutdown delay circuit, which can avoid strong light interference causing the fill light to go out instantly and the stroboscopic phenomenon that occurs in critical conditions such as evening or rainy days;
Built-in two-level lightning surge protection circuit effectively protects equipment from damage by lightning surges;
Unique secondary optical design allows you to freely choose beam projection modes at different angles;
The appearance design is fashionable and beautiful, and it is easy to install.
【Application Environment】:
License plate recognition system for parking lots and toll stations
Snow-bright Project, Safe City Video supplement Light
Monitoring and supplementary lighting in factories, schools, communities, etc.
【Technical Parameters】:
Model |
A-PL230 |
LED quantity |
24pcs 3W high-brightness LED |
Power |
30W |
Light transmission |
≥2880lm |
Control |
Photosensitive control (optional time control switch) |
Turn on illumination |
≤50Lux |
Close illumination |
≥100Lux |
Close delay |
8 seconds |
Protection level |
IP66, suitable for indoor and outdoor use |
Color temperature |
3000-3500K, 4000-4200K, 6000-7000K, etc. (optional) |
Working voltage |
AC220V |
Working temperature |
-40 degrees ~ +80 degrees |

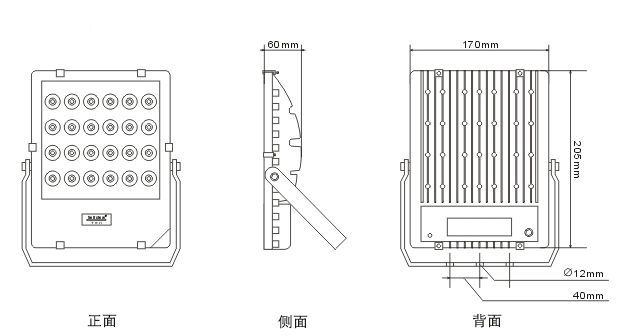

Overall dimensions |
L240*W170*H60mm |
Weight |
2.0Kg |
Lightning protection |
common mode ±4Kv differential mode ±2kV (GB/T17626.5) |
Viewing angle/sight distance |
15°/150m, 30°/80m, 45°/50m, 60°/40m |
