2 in 1 integrated gas white light flash & gas infrared flash traffic light
Description:
This two-in-one environmentally friendly supplement light is a professional lamp for traffic bayonet that integrates gas white light flash and gas infrared flash. It can realize two functions of light gas flash and infrared gas flash to avoid light pollution. It uses imported gas lamps as the light source, cooperates with the self-developed drive control module and lamp heat dissipation structure, and undergoes precise optical design to provide professional fill light for intelligent transportation and snapshots. Products are widely used in electronic police, security checkpoints, road monitoring and other systems.
Features:
Supports two working modes: gas white light flash and infrared gas flash;
Supports one RS485 signal to realize remote control such as brightness adjustment and fault detection to improve operation and maintenance efficiency;
Imported gas lamps are used to realize the gas flash function and improve the effect of capturing faces during the day;
Built-in infrared filter, switching between white light and infrared flash through stepper motor;
Supports TTL level and switch synchronous triggering methods;
The recycle time is less than 60ms, supporting super-speed continuous operation;
Supports statistical functions of trigger counting and flash times;
Built-in temperature sensor with over-temperature protection function;
Supports shielding false trigger interference signals to ensure normal use of the device. When the number of external triggers is greater than the false detection threshold, the flash enters the protection state and will not respond to the next trigger signal until the protection ends;
Aluminum alloy lamp body, fin-type heat dissipation structure, high temperature resistant PC mask, good light transmission effect;
The protection level adopts IP66 design, which is waterproof and dustproof;
Good heat dissipation design prevents the flash from being damaged by high-frequency flash.
Streamlined appearance design, beautiful and easy to install.
Application Environment:
electronic police system
Security checkpoint system
Speed capture system
Technical Parameters:
Model |
A-TG200 |
Flash energy |
200J |
Peak flash duration |
1/3000s |
Call back time |
<60ms |
Color temperature value (K) |
5500K±500K |
Exposure index |
64GN |
Strobe counting |
supports strobe and trigger counting functions |
Service life |
≥20 million times |
Center illumination |
≤4000Lx (white light) |
Brightness adjustment |
supports adjustable brightness from 1 to 16 levels |
Multifunctional integrated type |
supports two modes: white light gas flash and infrared gas flash. |
Effective fill light distance |
16m-25m |
Spot coverage |
single lane |
Pulse and comprehensive protection |
false triggering pulse protection |
Synchronized fill light for snapshots |
Supports synchronized supplement light for snapshots |
Trigger mode |
level trigger +5VDC, switching value |
RS485 remote control |
supports RS485 for remote control such as brightness adjustment, fault detection, etc. |
Interface |
1 strobe input, 1 RS485 |
Spot brightness |
Under standard installation scenarios, the surrounding environment of the vehicle, body features and facial features of the driver and passengers can be clearly seen. |
Working environment temperature |
-40~+80℃ (there will be attenuation when used at -40℃) |
Working environment humidity |
10%-90%@40℃, no condensation |
Protection level |
IP66 |
Weight |
4.5kg |

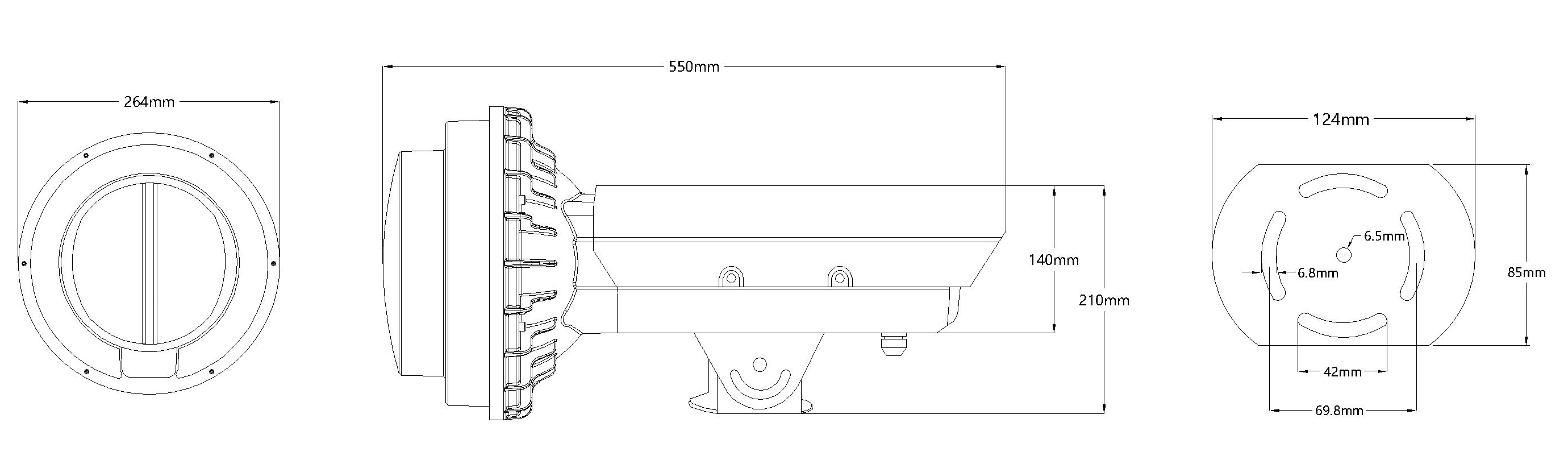

Overall dimensions |
L550mm×W264mm×H210mm |
Power supply voltage |
AC220V±10% (48Hz-52Hz) |
