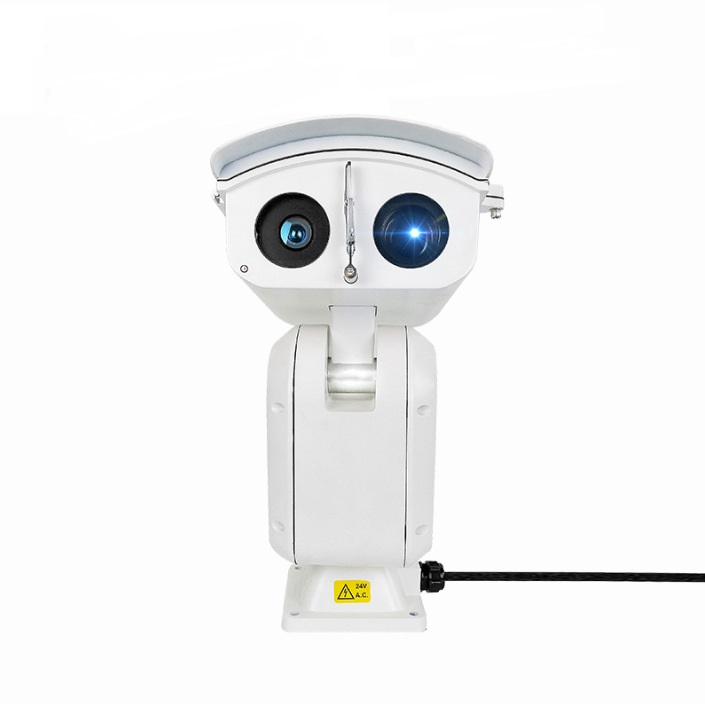

1.5km Long-distance laser IR network PTZ camera
Image sensor: 1/2.8'' Progressive Scan CMOS Sensor Video Compression: H.265/H.264 Resolution: 1920*1080P Focal length: 5.9-310mm Optical Zoom: 52x optical zoom IR Distance: Up to 1.5km Horizontal Rotation: 0~360° Vertical Rotation: +40°~-75° Power Supply: DC12V/DC24V/AC24V
Products
Products DETAILS
1.5km Long-distance laser IR network PTZ camera
Features：
H. 265/h.264 encoding, 2million pixels;
52 times optical zoom, focal length 5.9-310mm;
Using high-power laser lighting, up to 1.5 kilometers;
The laser and camera lens are intelligently synchronized to zoom and adjust the light intensity;
Select high-quality worm gear as the transmission part, with strong wind resistance
360 ° continuous rotation in horizontal direction;
Vertical direction -45 ° ~ +75 °;
The maximum horizontal manual speed is 30 ° /s;
The maximum vertical manual speed is 15 ° /s;
255 preset positions, 8 cruise scans, 8 linear scans;
The positioning accuracy is ± 0.1 °;
PTZ protection grade IP66
Conform to the national standard gb/t 17626.5-2008; Support onvif protocol
Lightning protection and surge prevention national standard level 4
Power supply: dc12v/dc24v/ac24v optional
Product application:
Forest fire prevention, safe cities, prisons, warehouses, oil depots, long-distance pipelines, large factory areas, mining areas, freight yards, border and sea defense lines, maritime and fishery administration, ecological protection zones, reservoirs, military bases, etc
Specification
|
Brand Name |
Acedo |
|
|
Model |
LRP2150 |
|
|
Product Name |
Telephoto laser night vision Network PTZ Camera |
|
|
Camera Module |
Image Sensor |
1/1.8" progressive scan CMOS |
|
Pixel |
2 MP |
|
|
Max. Resolution |
1920×1080 |
|
|
Min. Illumination |
Color:0.001 Lux@(F1.2,AGC ON)； B/W:0.0001Lux @(F1.2,AGC ON), 0 Lux with laser |
|
|
Main Stream |
50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
|
Focal length |
6.1mm to 317 mm, 52 × Optical Zoom |
|
|
Digital Zoom |
16 × |
|
|
Day & Night |
IR cut filter |
|
|
Focus |
semi-auto, manual, auto |
|
|
Optical Defog |
yes |
|
|
Night Vision |
Wavelength |
808 nm |
|
Laser Distance |
up to 1500 m Laser distance |
|
|
PTZ |
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-45° to 45° (auto flip) |
|
|
Pan Speed |
pan speed: configurable from 0.1°～35°/s |
|
|
Tilt Speed |
tilt speed: configurable from 0.1°～20°/s |
|
|
Proportional Zoom |
yes |
|
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
|
Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
|
|
Presets |
256 |
|
|
Preset Freezing |
yes |
|
|
Scheduled Task |
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan |
|
|
Network |
Video Compression |
H.265, H.264, MJPEG |
|
Audio Compression |
G722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
|
|
Communication Interface |
RJ45 10 M/100 M Ethernet Interface |
|
|
Protocols |
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP, SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP,UDP,IGMP, ICMP,DHCP,PPPoE,Bonjour. ONVIF, ISAPI, GB28181, Pelco-D, Pelco-P. |
|
|
API |
Open Network Video Interface, CGI, ISUP |
|
|
User/Host |
Up to 32 users. 3 levels: Administrator, Operator and User |
|
|
Smart Features |
Face Capture |
yes |
|
Basic Event |
motion detection, video tampering alarm, alarm input, alarm output, exception |
|
|
Smart Event |
Line Crossing Detection, Region Entrance Detection, Region Exiting Detection,unattended baggage detection, object removal detection, Intrusion Detection |
|
|
Smart Encoding |
low bit rate, ROI, SVC |
|
|
General |
Operating Conditions |
-40℃-70℃ |
|
Humidity |
≤90% |
|
|
Protection |
IP66 |
|
|
Power |
DC24V,130W max |
|
|
Dimensions |
480×300×485mm |
|
|
Weight |
20Kg |
|
|
Client language |
English |
