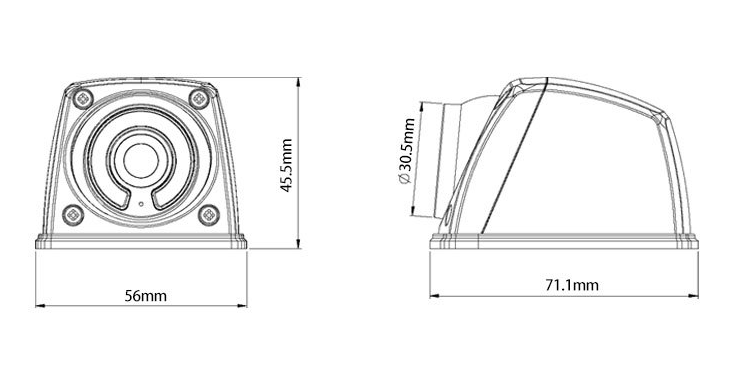

1.3MP AHD waterproof car camera with mirror
Image sensor |
1/3 AR0130 |
Gain control |
Automatic |
Format |
NTSC/PAL |
Signal-to-noise ratio |
better than 48DB |
Effective pixels |
1280 (H) X960 (V) |
White balance |
automatic |
Pixel size |
6.2UM*7.4UM |
GAMMA coefficient |
0.45 |
Effective image area |
4.623MM*3.611MM |
Electronic shutter |
AUTO |
Synchronization system |
Internal synchronization |
Backlight compensation |
AUTO |
Resolution |
1.3 million pixels |
Power supply voltage |
DC12V |
Microphone |
optional |
Lens |
2.3MM |
Number of infrared lights |
6PCS Lens angle |
Lens angle |
150° |
Output signal amplitude |
1.0VP-P/75OHM |
Current consumption |
65±5MA |
Scanning system |
interlaced scanning |
Working environment temperature |
-20C-70℃, maximum humidity 95% |
Minimum illumination |
0.1LUX (DAY), 0 LUX (WITH IR) |
Storage temperature |
-30C-80℃, maximum humidity 95% |
