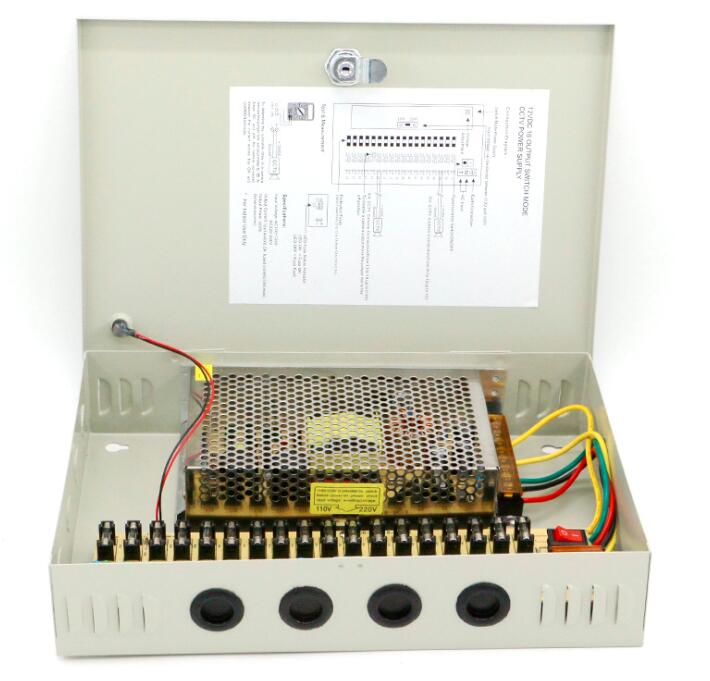

18 ways 20A 12V integrated power supply box with UPS function


Features:

12V DC, 18CH
FTC Fuse
20 Amps Power Box
UPS Functions
CCTV Camera Uninterruptible Power Supply
Fuse Rating: 1.75 Amp
90V~265V AC input
Power on/off switch
Surge protected
Regulated and filtered
Battery Protection at low voltage : 9V~11V

Technical parameters



Model

A-PB1820U

Input Specification

Input Voltage

AC 100VAC/220VAC

Input Voltage Frequency

50/60Hz

Output Specification

Output Voltage

DC 12V

Total Output Current

20A

Total Outputs

18ch

Fuse Type

Physical Fuse

Fuse Rating

1.75A

Weight (Kg)

Net Weight

2.4

Dimension (mm)

Cabinet Dimension

265H x 205W x85 D

Packing Dimension

275H x215 W x 98D

Protection

General Protection

each output has individual physical fuse and LED indicator, when problem  occurs,  only affect the individual output, other outputs still working

Circuit Short Protection

When short condition occurs, individual physical fuse will open the circuit, when condition removed,PTC fuse will automatically back to close.

High Voltage Protection

when high voltage occurs, the surge protection  will be hit through to protect the connected device

Over Current protection

when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal and don't  need to change the FTC fuse.
