1080P AV KVM over IP matrix video wall Encoder
Description:
The encoder of AV over IP system and decoder of AV over IP system can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV over IP system can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV over IP system helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.
AV over IP system system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The decoder of AV over IP system also support the CEC/RS232 function to power on and off displays.
AV over IP system can be popularly used in the hospital, medical demonstration, school smart classroom, radio and television video production, shopping mall, hotels, command center, traffic emergency commandand corporate training, social service organizations including scenic spots, theaters, and airportsetc.
Features:
.Unlimited points of the Tx
·Create a PoE HDMI over IP matrix or Splitter
·Wireless iPad Real Time video preview
·Super easy drag-n-drop video wall steup
·Video wall supports up to a 16x16(256TVs)
·Zero Latency & Fast switching Time
·Separate audio & RS232 Pass-through
·HDMI Tx & Tx over IP W/ PoE to 330 feet input and output
AV KVM Over IP Encoder Technical Parameters
Video |
|
Input Port |
1 x HDMI, 1xUSB-A, 1x IR Tx |
Input Video Type |
HDMI 1.3, HDCP 1.4 |
Input Resolution |
640 x 480@60Hz, 480p@60Hz,576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz |
Input Video Signal |
0.5~1.2 V p-p |
Encoding Data Rate |
Up to 30 Mbps, configurable |
Output Video Port |
1 x LAN |
Output Video Type |
H.264/MPEG-4 AVC |
Output Resolution |
? Large IP stream: from 480p@60Hz to 1920 x 1080@60Hz ? Small IP stream: 352x288@5Hz |
Video Impendence |
100 Ω |
Input DDC Signal |
5 V p-p (TTL) |
End-to-End Time Latency |
When works with decoder: ? About 50 ms (Low latency mode) ? About 250 ms (High quality mode) |
Audio |
|
Input Audio Port |
1 x HDMI |
Input Audio Format |
LPCM 2.0 |
Output Audio Port |
1 x 3-pin Phoenix connector |
Output Audio Format |
Stereo |
Control |
|
Control Method |
IP Control Box (IPM-MG), PC configurator, iPad on iPad |
General |
|
Operating Temperature |
+32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing |
Storage Temperature |
-4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing |
Power Supply |
12 V 1 A DC |
Power Consumption |
6W (Max.) |
ESD Protection |
Human body model: ? ±8kV (air-gap discharge) ? ±4kV (contact discharge) |
Surge Protection |
Voltage: ±1 kV |
Product Dimensions (W x H x D) |
175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9'' |
Net Weight |
0.60kg / 1.32lb |

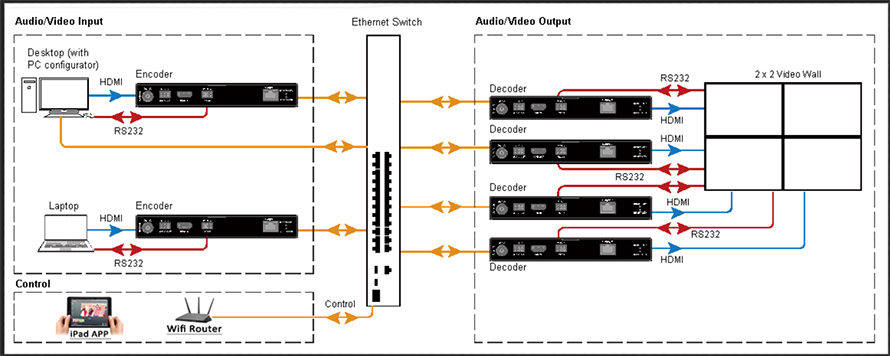

AV KVM Over IP Encoder Application Diagram
1)matrix switcher
2) video wall
3)media device
