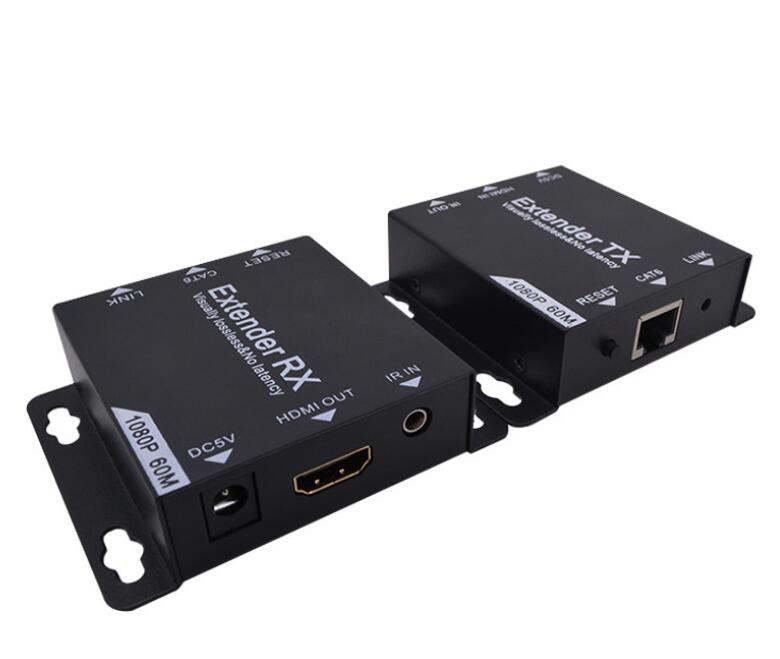

60m HDMI extender with infrared return
The HDMI CAT5e / 6 Expander with IR-50m extends HDMI audio / video signals over a cost-effective CAT5e / 6 cable while maintaining signal strength and superior audio / video quality. It supports up to 1080p resolution, surround sound up to 7.1-channel, and can extend the transmission distance up to 60 meters. Infrared remote control allows users to control source devices over long distances (usually where HDTV is located)
Products
Products DETAILS
60m HDMI extender with infrared return
Cost-effective solution - Expand HDMI audio / video signals
through a cost-effective CAT5e / 6 cable up to 165ft; connect HDMI source
devices (PCs, game consoles, Blu-ray players, media players) to transmitters,
Run the CAT5e / 6 cable from the receiver to the receiver and connect your HDTV
from a remote location to the receiver using an HDMI cable; the HDMI cable
needs to be sold separately
HDMI Barrier-free transmission Expands HDMI audio / video signals to
synchronous output Video display as smooth as direct connection Supports 60Hz
video resolution and surround sound at 480i / 480p / 720p / 1080i / 1080p Up to
7.1 channel or stereo digital Audio; compatible with HDCP compatible devices
and content
IR remote control - allows the source device to recognize remote commands; you
can use the included IR cable to control the HDMI source device in a secondary
location for forwarding commands over the CAT5e / 6 cable
Easy Installation - Surface Mount Metal Enclosure with Accessory for Easy
Placement; Robust Metal Enclosure Provides Durability and Minimizes EMI / RFI
Noise Disturbances * NOTE: High quality CAT5e / 6 cables are the key to
delivering premium content ; CAT6 is recommended for better performance
The HDMI CAT5e / 6 Expander with IR-50m extends HDMI audio / video signals over a cost-effective CAT5e / 6 cable while maintaining signal strength and superior audio / video quality. It supports up to 1080p resolution, surround sound up to 7.1-channel, and can extend the transmission distance up to 60 meters. Infrared remote control allows users to control source devices over long distances (usually where HDTV is located)
Compatible devices
HDMI source devices such as computer PCs, game consoles, Blu-ray players and
media players
HDMI monitor, monitor and HDTV
Package Contents

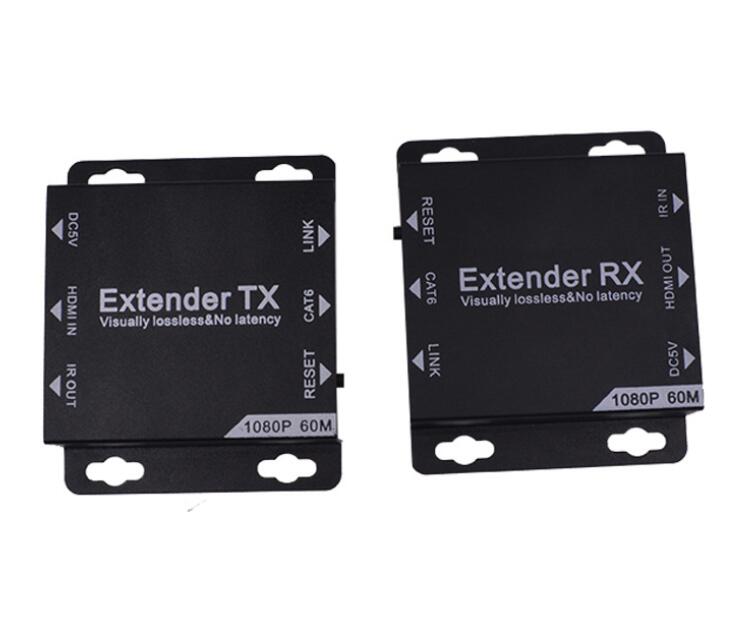

HDMI CAT5e / 6 Expander with IR-50m Kit (Transmitter and Receiver Unit)
Infrared TX cable
IR RX cable
Power Adapter (1)
User manual
Video bandwidth Single Link Single Link 165Mhz (4.95Gbps)
Video resolution 408i / 480p / 720p / 1080i / 1080p @ 60Hz
Audio support Surround (up to 7.1 channels) or stereo digital audio
Transmission range 1080p (24-bit color) up to 164ft (50m)
Enter the TMDS signal 3.3 volts
Enter the DDC signal 5.0 volts / P-P
ESD protection Model: +/- 8kV (Air Gap Discharge); +/- 4kV (Contact Discharge)

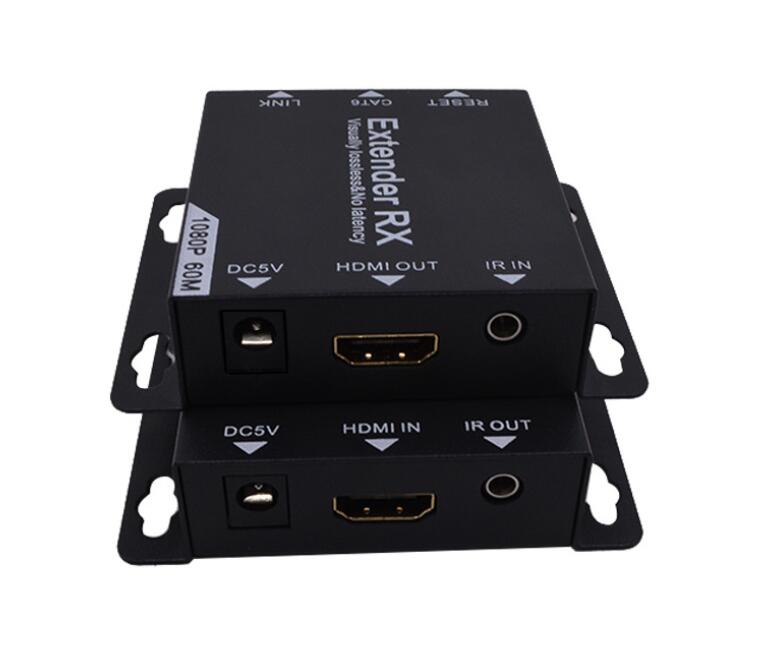

HDMI 19-pin, type A, female RJ-45 connector
WE / SS 8P8C 3.5mm connector
IR Blaster (TX); Infrared Receiver (RX)
housing metal
power supply 5V / 1A DC
energy consumption 1.5 W (TX); 1.0 W (RX)
Operating temperature 32 ° to 104 ° F (0 ° to 40 ° C)
Storage temperature -4 ° to 140 ° F (-20 ° to 60 ° C)
Relative humidity 20% - 90% non-condensing
