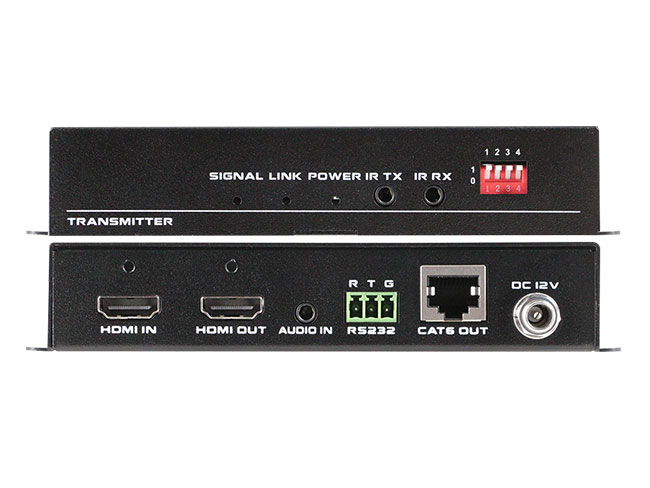

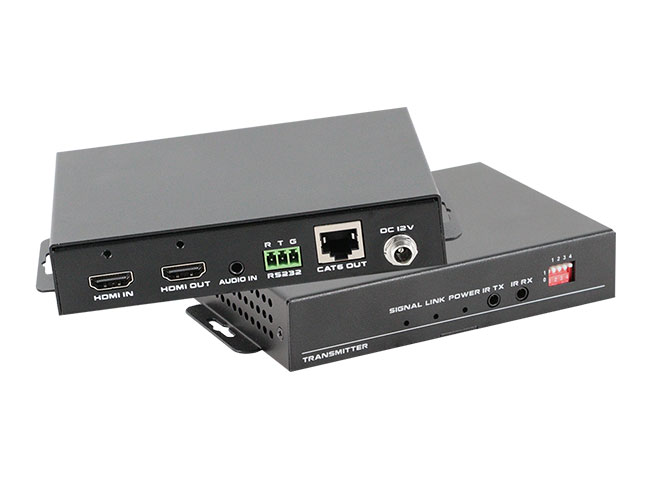

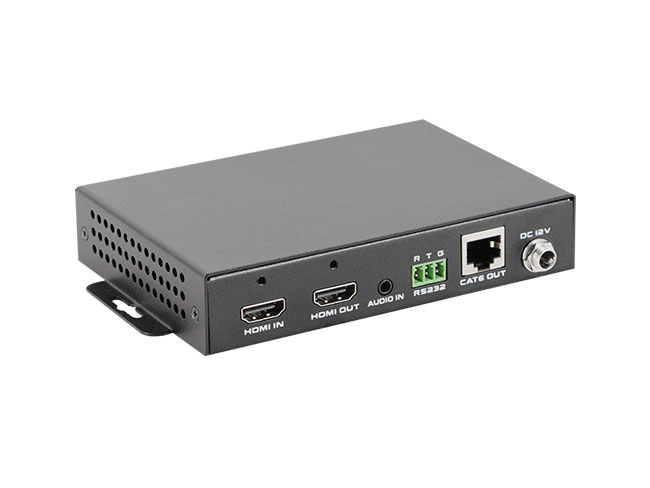

100m 4K HDMI Extender HDBaseT Transmitter with PoC EDID
This HDMI extender is using the advanced HDBaseT technology. It can transmit the HDMI signal, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power one side. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P 60Hz resolution, it can transmit to a distance of 70m/220ft(100m/33oft), for 4K60Hz(4:2:0) it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID, compliant with HDMI2.0, HDCP2.2. It can be popularly used in media conferencing room, school, government, cinema and so on applications.
Products
Products DETAILS
100m 4K HDMI Extender HDBaseT Transmitter with PoC EDID
Features:
Uses the HDBaseT technology extension over single CAT5e/6/7
·Supports FULL HD, UHD, 3D, 4K60(4:2:0)
·HDCP2.2, HDMI2.0
·Bidirectional IR&RS232 control signal transmission
·Power over Cable (POC) locally powered over Cat5e/6 cable at either end
·Supports 7.1 DTS Master HD, Dolby True HD
·LED indicators, EDID manager(TX)
·Support 3.5mm audio embedd function(TX)
·Support HDMI output
Technical parameters:
|
Model |
A-HDBT70100 |
|
Input |
LED indicators, EDID manager(TX) |
|
Output |
1×HDBaseT |
|
Standard Protocol |
Supports HDMI2.0 and compatible HDCP 2.2 |
|
Resolution |
1920x1200, 1680x1050, 1360x768, 1280x800, 1920x1080, 1600x900, 1366x768, 1280x720, 1024x576, 1920x1200, 1680x1050, 1360x768, 1280x800, 4096x2160@30Hz, 3840x2160@30Hz, , 3840x2160@60Hz |
|
Bandwidth |
10.2Gbps |
|
Distance |
1080p60Hz: 70/100m, 4K60(4:2:0) distances to 35/70m |
|
Dimension |
115*84*16(mm)(Tx/ Rx)/ 4.52*3.30*0.63(inch) |
|
Weight |
160g(Tx/Rx) 0.35lbs |
|
Power Supply |
AC：100-240V 50/60Hz 1.5A Max DC：12V 1500mA |
|
Power consumption |
≤10W |
|
Working Humidity |
10%-90% |
|
Working Temperature |
0℃-50℃ |
|
Storage Temperature |
﹣20℃-55℃ |
