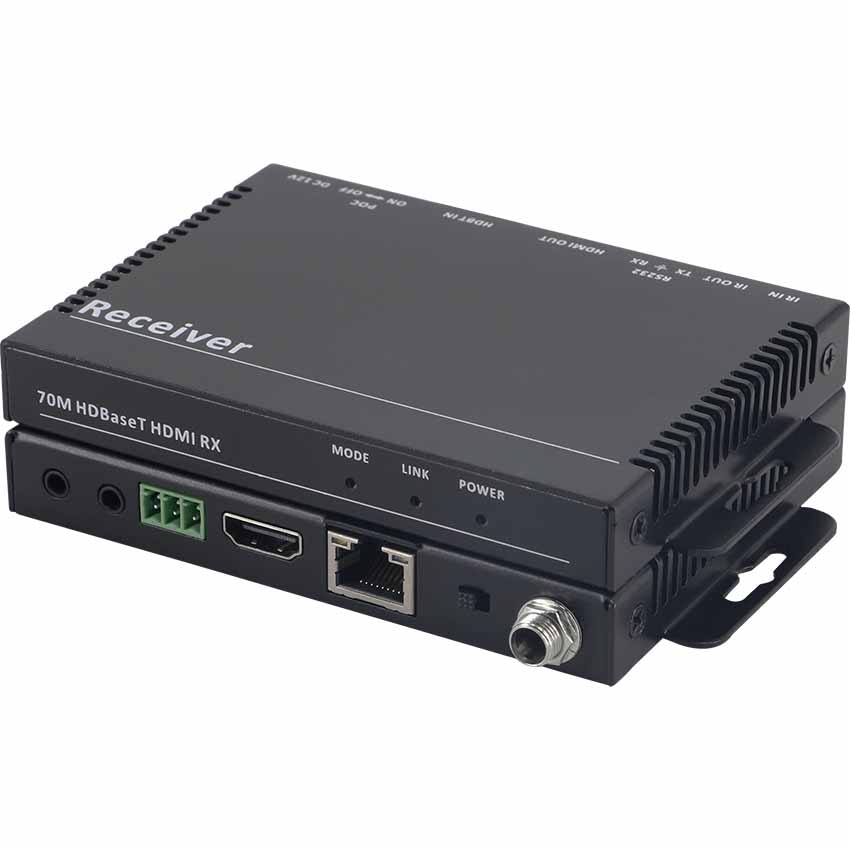

70-100m 4K HDMI Extender HDBaseT Receiver w/ PoC
4K HDMI Extender HDBaseT transmitter and receiver is an HDBaseT technology extender, it supports no compression, no losses, no latency HDMI signal transmission. It can can work with other HDBaseT equipment, such as Sony HDBaseT projector.
Products
Products DETAILS
70-100m 4K HDMI Extender HDBaseT Receiver w/ PoC
Features:
HDBaseT technology HDMI Extender
·Extend 4K60 video & IR & RS232 Control
·Bi-directional Power & IR to/from TV & Source
·Support the CEC fuction
·Power over Cable (POC) locally powered over Cat5e/6 cable at either end
·Supports HDMI2.0 and HDCP 2.2
·Transmit highest quality audio and video, for 1080p can up to 70/100m(230/330feet) and 4K60(4:2:0) can up to 35/70m(110/220feet) over single Cat6/6a/7 cable
Technical Parameters
|
Model |
A-HDBT7010L |
|
Input |
1×HDBaseT |
|
Output |
1×HDMI, 1×RS232,1×R-Tx, 1×R-Rx |
|
Standard Protocol |
Supports HDMI2.0 and compatible HDCP 2.2 |
|
Resolution |
Up to 3840x2160@60Hz |
|
Bandwidth |
10.2Gbps |
|
Distance |
1080p60Hz:70m(Cat6/7) ; 1080p: 70/100m(230/330feet) |
|
Dimension |
115*84*16(mm)(Tx/Rx)/ 4.52*3.30*0.63（inch) |
|
Weight |
160g(Tx/Rx) 0.35lbs |
|
Power Supply |
AC：100-240V 50/60Hz 1.5A Max DC：12V 1500mA |
|
Power consumption |
≤10W |
|
Working Humidity |
10%-90% |
|
Working Temperature |
0℃-50℃ |
|
Storage Temperature |
﹣20℃-55℃ |
