A BNC to HDMI conversion

BNC to HDMI video converter is a BNC to HDMI output converter; 480I (NTSC) / 576I (PAL) format audio and video signals can be converted to 720P or 1080P HD HDMI signals, but also can enter the high-definition format HDMI signal for easy connection DVD, set-top box, HD player, game console (PS2, PS3, PSP, WII, XBOX360, etc.), allowing you to experience the immersive experience of HD effects, the image is more clear and stable . Can be ordinary cameras, VCD, DVD, analog digital set-top box audio and video signals into HDTV signals through BNC to HDMI converter to HD large screen LED digital LCD TV HDMI output resolution up to 1920 * 1080.

HDMI (High Definition Multimedia Interface) is an all-digital video and audio transmission interface, which is a digital signal that can be used in set-top boxes, DVD players, personal computers, video games, integrated amplifiers, digital Sound and TV. HDMI can simultaneously transmit audio and video signals, high-quality transmission of uncompressed high-definition video and multi-channel audio data, the maximum data input and output interface transmission speed of 5Gbps. Common HDMI interface devices are: HD cameras, HD cameras, game consoles, TV sets, monitors, computer graphics, HDMI capture cards, set-top boxes, DVD players and so on. [1]
BNC BNC interface is relatively early appeared as an interface, which consists of red, white, yellow three color lines, of which the yellow line for the video transmission line, red and white is responsible for the left and right channel sound transmission.

Two. BNC to HDMI converter function introduction
BNC signal to HDTV 1080p. - HDMI output: 1080p @ 60Hz. - The system defaults to BNC signal input.

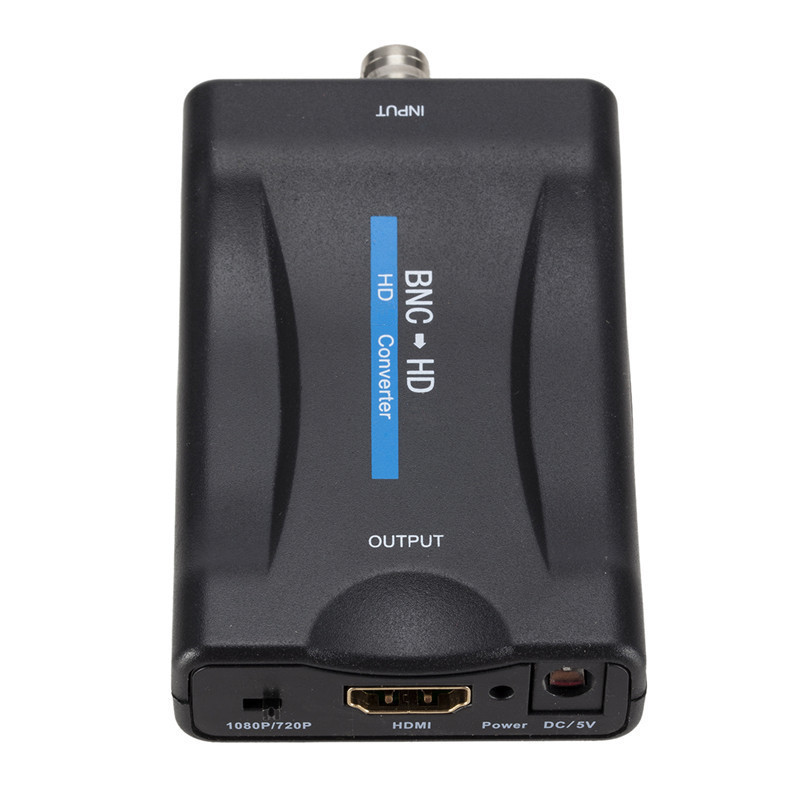

BNC to HDMI converter
- RCA audio and video input, HDMI output.
- Video input system: NTSC / PAL (auto detect, adaptive).
- Compatible with HDCP; HDMI1.3.

BNC to HDMI converter input and output

1) HDMI output interface: docking HDTV, HD projector HDMI output format: 720P @ 50 / 60Hz, 1080P @ 50 / 60Hz
2) .BNC input interface: camera.
BNC input format: PAL / NTSC_M / NTSC4.43 / SECAM / PLA-M / PAL-N

Four. BNC to HDMI converter features
1. Using a new generation of low-power digital chip processing, 24 small non-stop work, the heat is not large, stable work
2. Using 3D compensation technology, effectively eliminate fast moving picture jitter and tailing phenomenon
3. Using DCDI processing technology
a. Can eliminate ordinary HD converter in the video sawtooth twill.
b. Use the "bad edit detection" ability to detect the source stream of a movie in a variety of video streams and reconstruct a more accurate video signal, resulting in an image with no moving matter at full vertical resolution.
c. Use its True Life Enhancement technology to identify image detail changes such as fine lines, spots or hair on the skin. The handling of these details makes the picture look sharper and more vivid.
d. Use Motion Adaptive Processing technology. Reduce noise while not producing stains, the original image of the original restore the face.
e. The use of dynamic detector technology to selectively static images for short-term filtering, and the use of image storage technology to be stored for the storage of color. After using this technology, in the staggered colors of the scene: such as tiled roof, cross-pattern clothes, leaf scenes, from which no longer appear extra noise.
4. Scaler video processing technology used:
a. Multiply the BNC signal to an HD 1080P / 720P @ 50 / 60Hz output
b. Up to 1080p @ 50 / 60Hz output in HD with Scaler UP technology in standard definition video formats (480i, 480p, 720p, 1080i)
5 using I2S technology
The input L / R analog audio signal, after I2S technology, superimposed on the HDMI, HDMI cable to facilitate the transfer of audio! Eliminate the transmission of analog audio cable interference
6. Standard conversion video processing technology
a. Convert PAL, NTSC to HDMI @ 50 / 60Hz

Problem checking:

First, no electricity
Solution: 1, check the power plug is properly inserted into the power outlet. 2, check whether the power is turned on.
Second, no images
Solution: 1, confirm the TV is turned on and in connection with the machine. 2, input source is turned on and connected intact. 3, check the system connection status. 4, check the connection is intact. 5, wire quality (HDMI cable requirements in line with HDMI 1.3 standards).
Third, the image blurred
Solution 1, the connector to re-connect to prevent bad socket interface 2, wire quality (HDMI cable requirements in line with HDMI 1.3
