Scart To HDMI converter

1.No need to install drivers, portable, flexible, plug and play.

2. Provide advanced signal processing with great precision,colors, resolutions, and details;

3. Support PAL, NTSC3.58. NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.

4.Support HDMI 1080p or 720p output.

Send Email:

[email protected]

Products

Products DETAILS

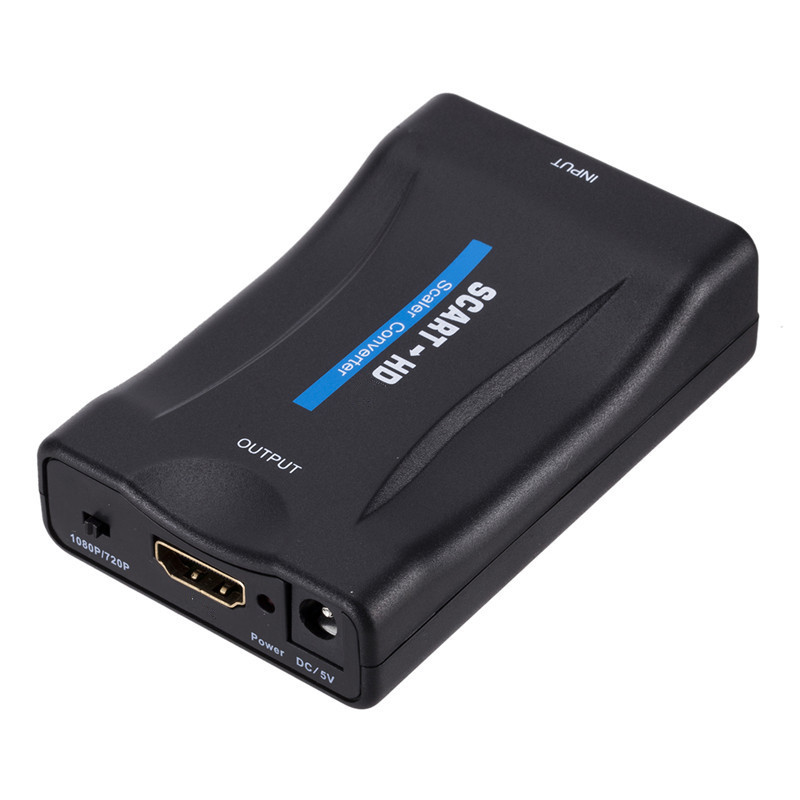

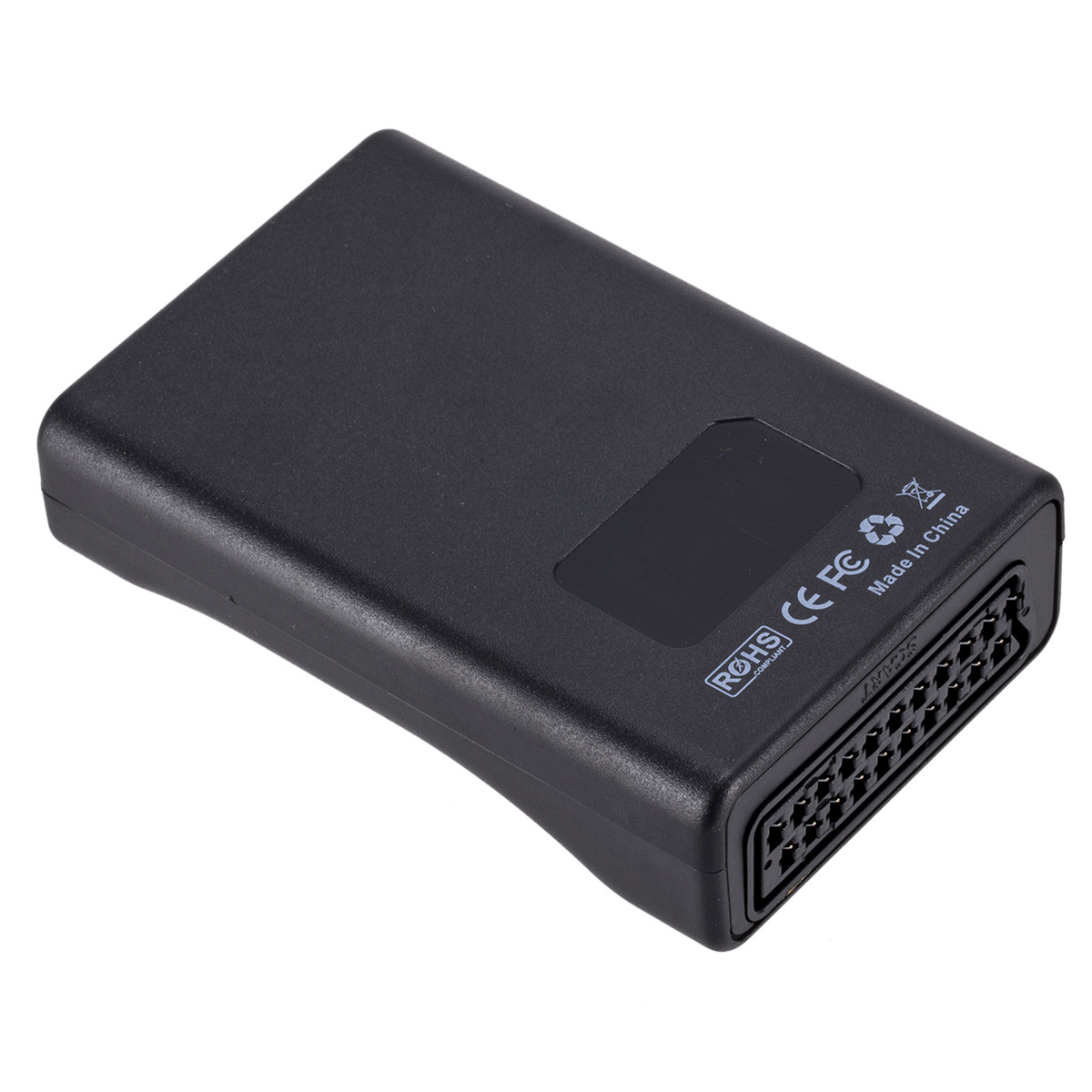

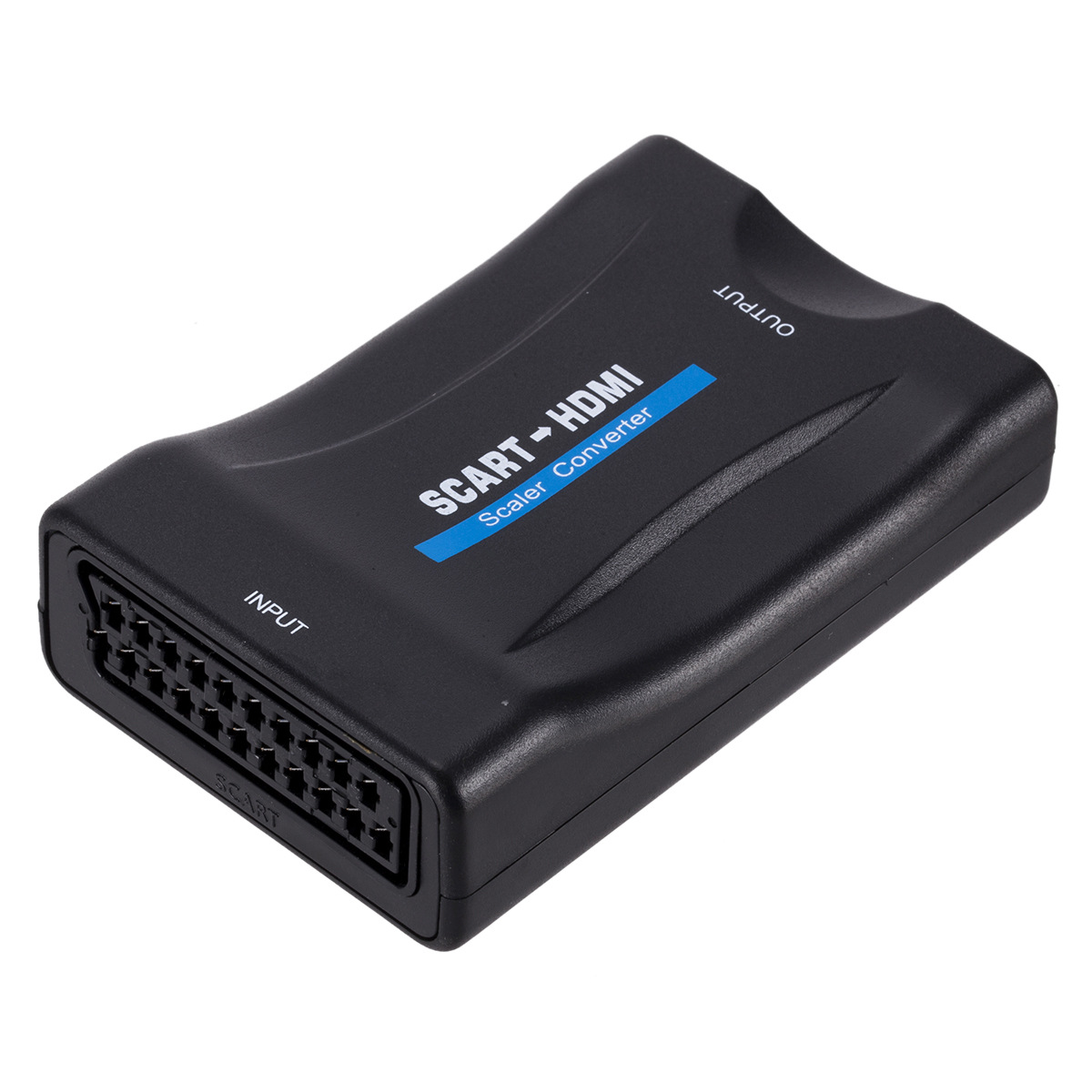

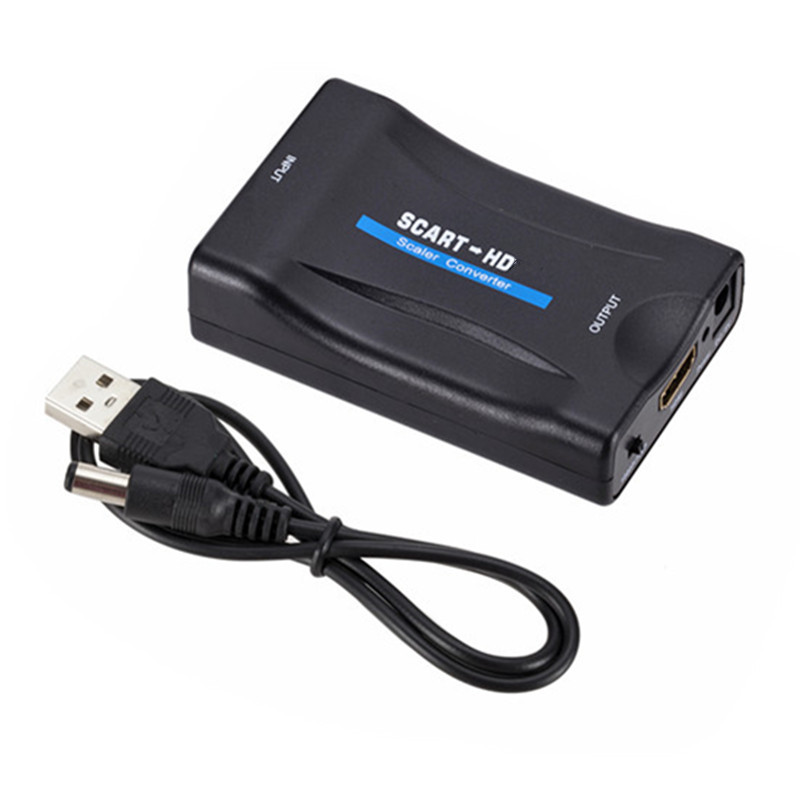

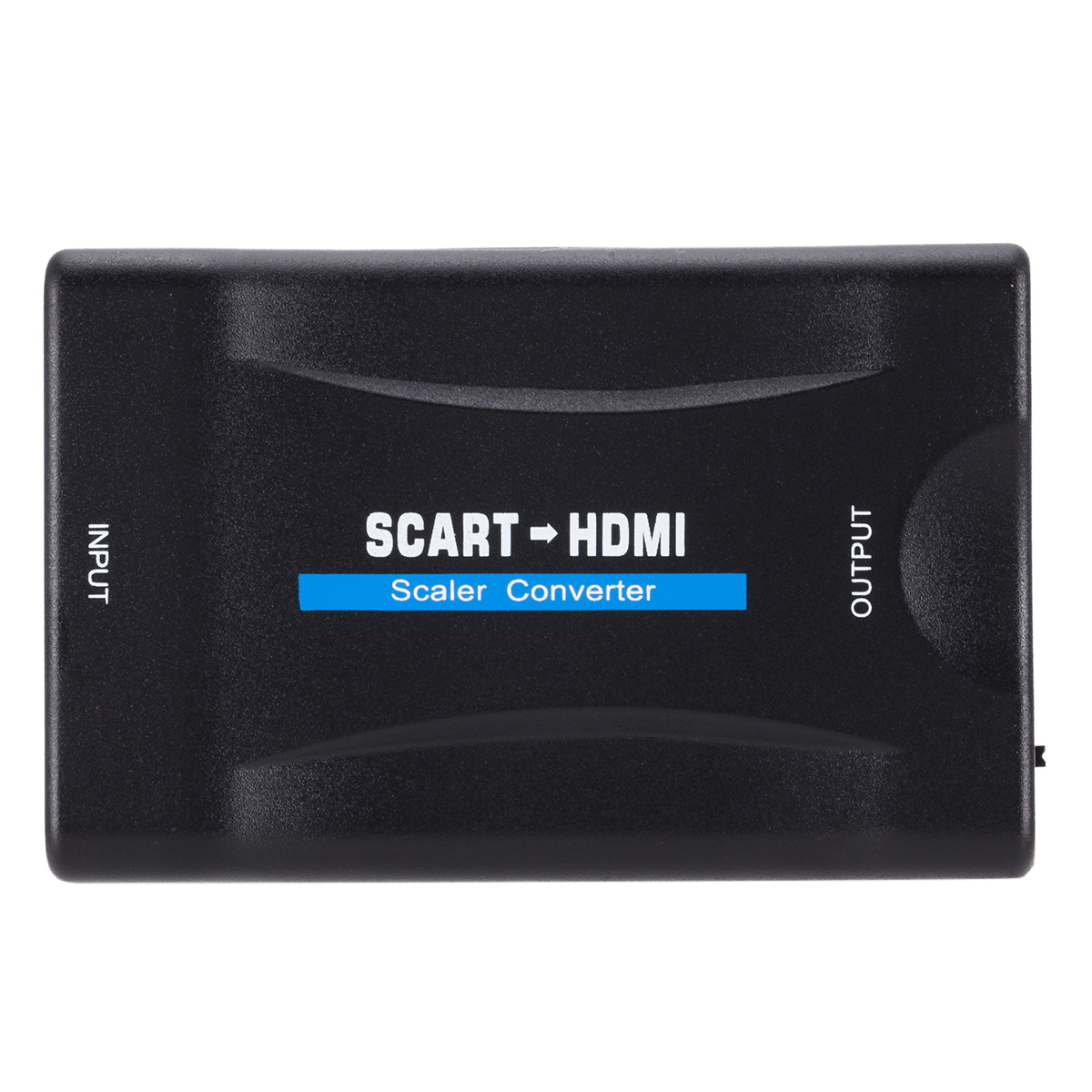

Scart To HDMI converter

Introduction

This Scart To HDMI converter is a universal converter for analog Scart input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p(60Hz) output. Making video come alive, delivering the sharpest,most realistic HD visuals available.

Features:
No drive, light and flexible, plug and play
Adopt advanced signal processing technology to ensure excellent accuracy, color, resolution and detail
Support PAL, NTSC3.58. NTSC4.43, SECAM, PAL / M, PAL / N standard TV format input
Support HDMI 1080p / 720p output

Specifications:

SCART input	PAL, NTSC 3.58. NTSC 4.43, SECAM, PAL / M, PAL / N
HDMI output	1080p / 720p
HDMI Output Cable Length	≤7m AWG26 HDMI Standard Cable
SCART Input Cable Length	≤8m AWG26 SCART Standard Cable
Maximum operating current	350mA
Power Adapter Specifications	AC 100V-240V 50 / 60HZ, DC 5V / 1A
Operating temperature	- 10 ~ + 55 ℃
Storage temperature	- 20 ~ + 60 ℃
Working humidity	10 ~ 90% RH (No condensation)
Storage humidity	5 ~ 95 % RH (non-condensing)
Case Size	88.5 * 57.5 * 25 (mm)
weight	60 grams

Package Contents:
1xScart to HDMI Converter ................... ................................................. ................................... 1PCS
1xUser'sManual ......................................... ................................................. ... 1PCS
