S-VIDEO/AV CVBS TO HDMI converter
1. Video signal output up to HDTV 720p; 2. Automatic detection (audio delay function); 3. audio and video synchronization; 4.HDMI output: 720p @ 50Hz720p @ 60Hz; 5.HDMI with audio output; 6. Video output system: NTSC 3.58 / PAL (automatic) 7. Match the DVI connector through the HDMI-DVI adapter. Specification signal input / output
Products
Products DETAILS

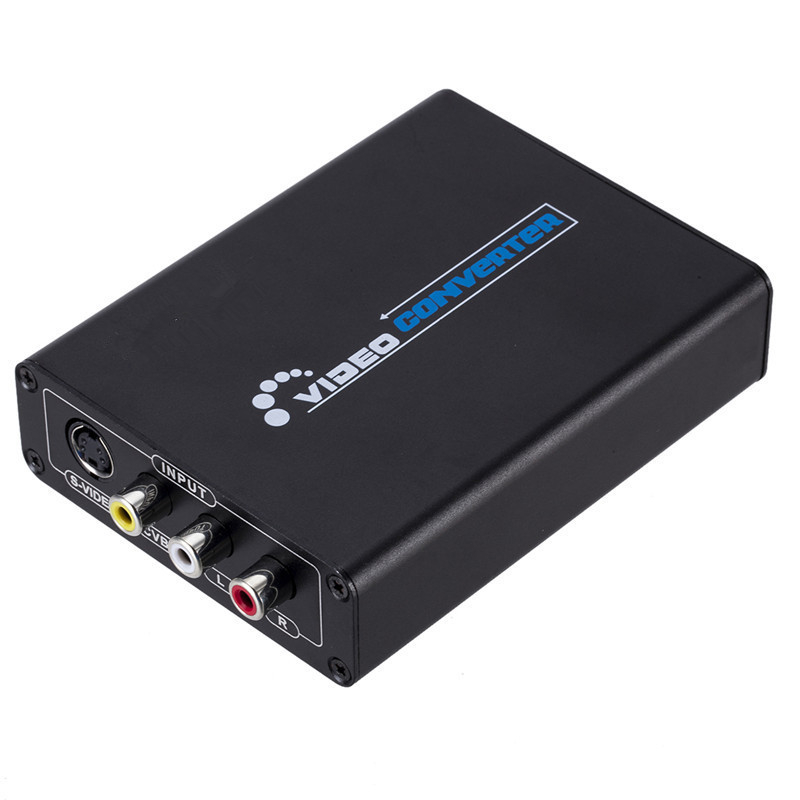

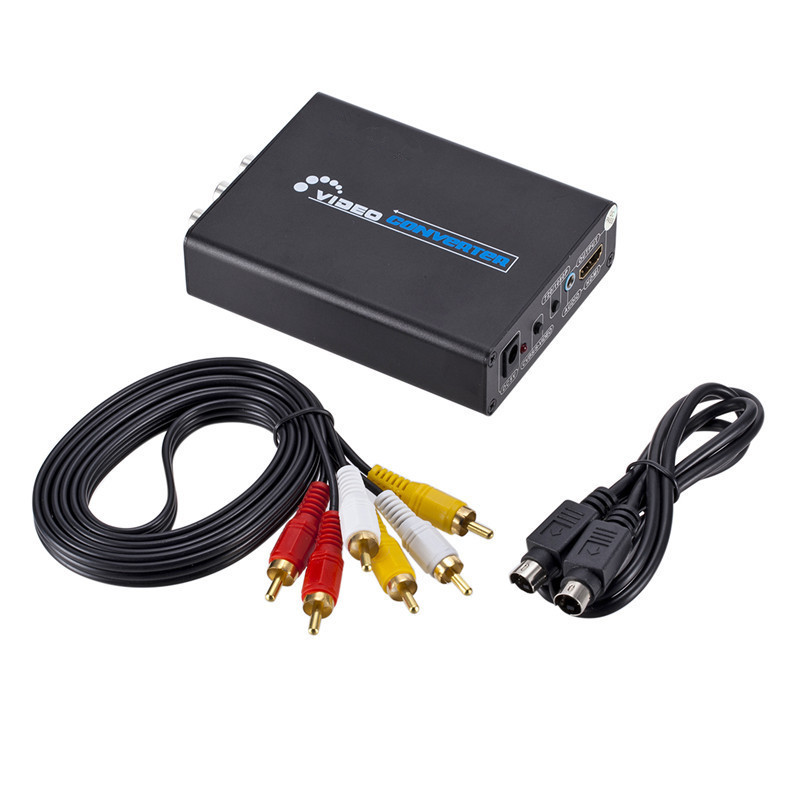

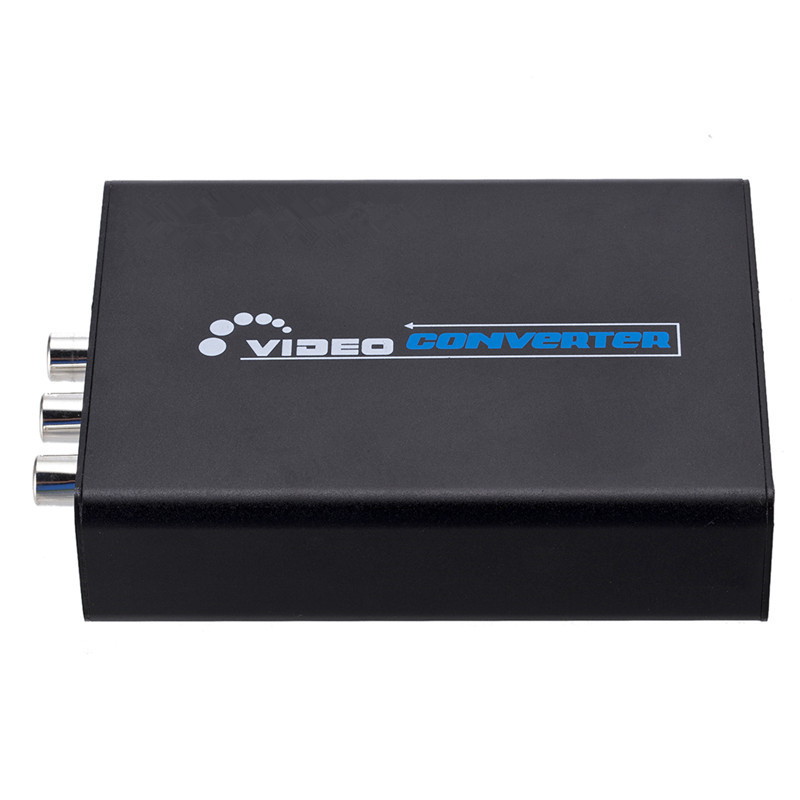

S-VIDEO/AV CVBS TO HDMI converter
This converter converts analog CVBS, S-VIDEO and audio (L / R) to HDMI signals, which not only gives your HDTV the ideal image but also has a good sound quality, boosting the interlaced video signal to 720P Progressive signal. This product is mainly used for HDTV exhibitions, high definition television, set-top boxes, DVD and other projection equipment factories, data monitoring centers, major convention and exhibition centers, schools and various companies.
Features:
This HDMI matrix switcher has many features and excellent performance. Among
these features you will find:
1. Video signal output up to HDTV 720p;
2. Automatic detection (audio delay function);
3. audio and video synchronization;
4.HDMI output: 720p @ 50Hz720p @ 60Hz;
5.HDMI with audio output;
6. Video output system: NTSC 3.58 / PAL (automatic)
7. Match the DVI connector through the HDMI-DVI adapter. Specification signal
input / output
Product parameters:
|
Video signal input |
1.2 volts p-p |
|
DDC signal input |
5 volts p-p (TTL) |
|
Video output |
HDMI |
|
Support video format |
DTV / HDTV HDMI720p @ 60Hz |
|
interface |
HDMI connector type A female (19-pin) |
|
S-VIDEO interface |
AV interface |
|
usage frequency |
Data transmission frequency 165MHz |
|
Size |
(length x width x height) 155 × 70 × 23MM |
|
Weight (net weight) |
255G |
|
Temperature (when used) |
0 ℃ to +70 ℃ |
|
Humidity (when used) |
10% to 85% RH (no crystallization) |
|
Temperature (Storage) |
-10 ℃ to +80 ℃ |
|
Humidity (Storage) |
5% to 90% RH (No crystallization) |
|
External power supply |
5V DC @ 2A |
|
Energy consumption |
(max) 5 W |
|
Management certification |
Converter device FCC, CE, UL Power UL, CE, FCC annex |
