BNC to VGA video converter
This product (BNC to VGA) is a non-destructive video converter designed for security, medical and home users. It can convert video signals into VGA signals of various resolutions from 800X600 to 1920X1200 using advanced digital image processing technology A variety of VGA resolution output, in order to achieve the back-end display can be achieved point-to-point display to show the perfect picture.
The product is widely used in DVR back-end
monitors, video teaching equipment, subway engineering, industrial, etc., to
replace the traditional CRT monitor, small size, clear picture quality, plug
and play, simple and convenient.
Product introduction
1: product features
Input Interface: 1xBNC, 1xS-Video, 1xVGA
Output interface: 1xVGA
2: Output resolution
800X600 @ 60Hz, 800X600 @ 75Hz, 1024X768 @ 60Hz, 1280X1024 @ 60Hz, 1440X900 @
60Hz, 1680X1050 @ 60Hz, 1920X1080 @ 60Hz, 1920X1200 @ 60Hz
3: Input signal format
BNC and S-Video inputs: Automatic identification PAL, NTSC VGA input: BYPASS
4: Use operation introduction
Name Description
(1) Input
Video Input Select: Loop Switching AV (CVBS) >> SV (S_VIDEO) >> VGA
>> AV (CVBS)
Press and hold the Input key to turn on the power and reset the system to
restore the factory settings.
(2) Menu Menu: Cycle through the adjustment menu, including: Brightness,
Contrast, Sharpness, Color Saturation, Hue, HP, VP,
(3) Mode - Please turn off the power and then press and hold the Input button
to power on, reset the system and restore the factory settings.
Features
1: input support PAL, NTSC, SECAM full system
2: Can switch from 800X600 to 1920X1200 VGA output resolution
3: brightness, contrast, sharpness, color, color, horizontal position, vertical
position adjustable
4: Bitmap OSD display
5: support for freezing function
6: Digital comb filter, perfect separation of bright colors
7: 3D motion compensation
8: Standardized signal output design, without distortion to restore the natural
horizon
9: Industrial product design, 24 hours a day, stable and reliable
10: small size, easy to place (size: 100X65X28mm)
11: 5V / 1A power adapter

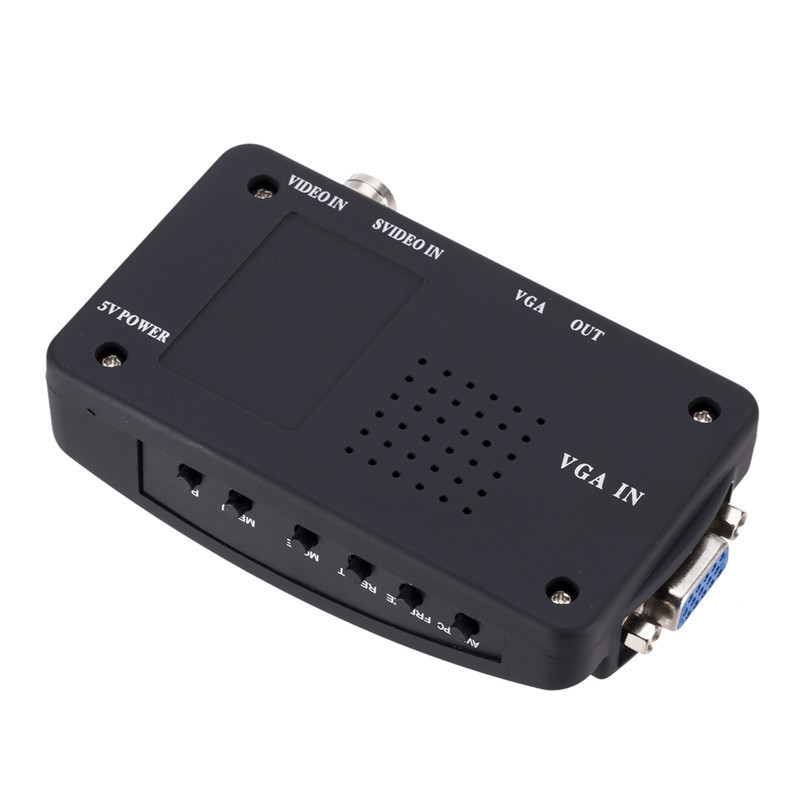

DC / 5V: Power
input interface, input 5V / 1A power supply
LED: power indicator

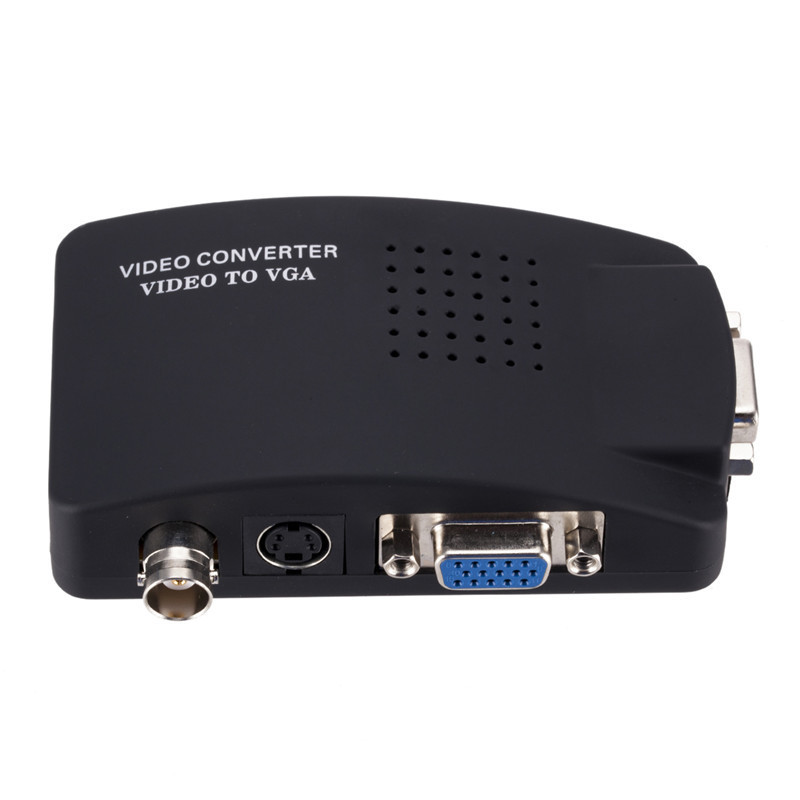

1 .---------------------------- BNC input interface; docking camera /
monitoring head
2 .--------------------------- S terminal input interface; docking set-top box
/ DVD
3 .---------------------------- VGA input interface; docking computer PC or
laptop
4 .----------------------------- VGA output interface, docking display,
projector

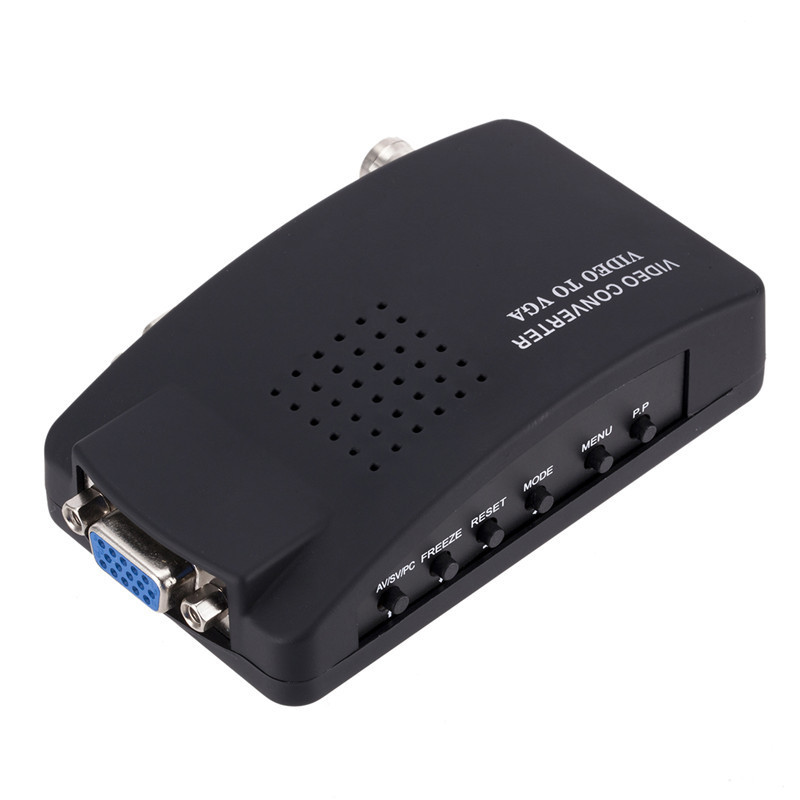

5 .------------------------------ INPUT button, input terminal BNC, S-VIDEO,
VGA input channel
6 .------------------------------ MENU menu adjustment

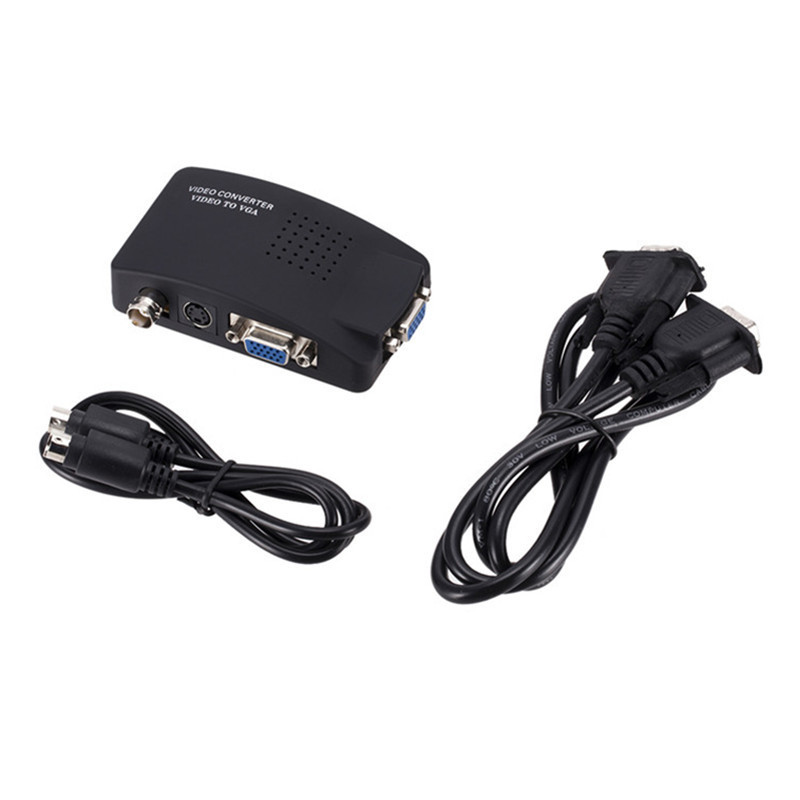

Product accessories
BNC to VGA host 1
5V / 1A power adapter 1
S-VIDEO line a
1 product manual
